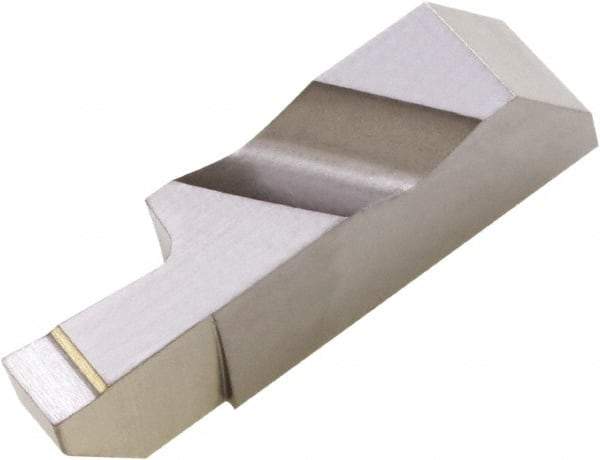

Kyocera - 3094KCGDP Grade TC40, 0.0941" Cutting Width Cermet Grooving Insert - 1/4" Max Depth of Cut, Right Hand, 0.2mm Corner Radius, Uncoated
Item #: 30264592
Brand: Kyocera
Model #: 8850405
Exact Tooling IR#: 04
Features and Benefits
Cermet is comprised of ceramic and metal and can be used at higher speeds than coated carbides. It is commonly used on cast iron, steel, stainless steel and nonferrous materials.
| Product Specifications | |
|---|---|
| Insert Style | KCGDP |
| Insert Size | 3094 |
| Material | Cermet |
| Cutting Width (Decimal Inch) | 0.0941 |
| Maximum Depth of Cut (Inch) | 1/4 |
| Manufacturer's Grade | TC40 |
| Coating | Uncoated |
| Cutting Direction | Right Hand |
| Insert Hand | Right Hand |
| Cutting Height (mm) | 8.74 |
| Lead Angle | 3 |
| Multi-Use Tool | Yes |
| Multi-Use Application | External Turning; Internal Turning |
| Corner Radius (mm) | 0.20 |
| Coating Process | Uncoated |
| Overall Length (mm) | 25.15 |
| Series | Cera-Notch |
| Rake | Positive |
| ISO Number | KCGDP3094RTC40 |
| Insert Thickness (Decimal Inch) | 0.1950 |
