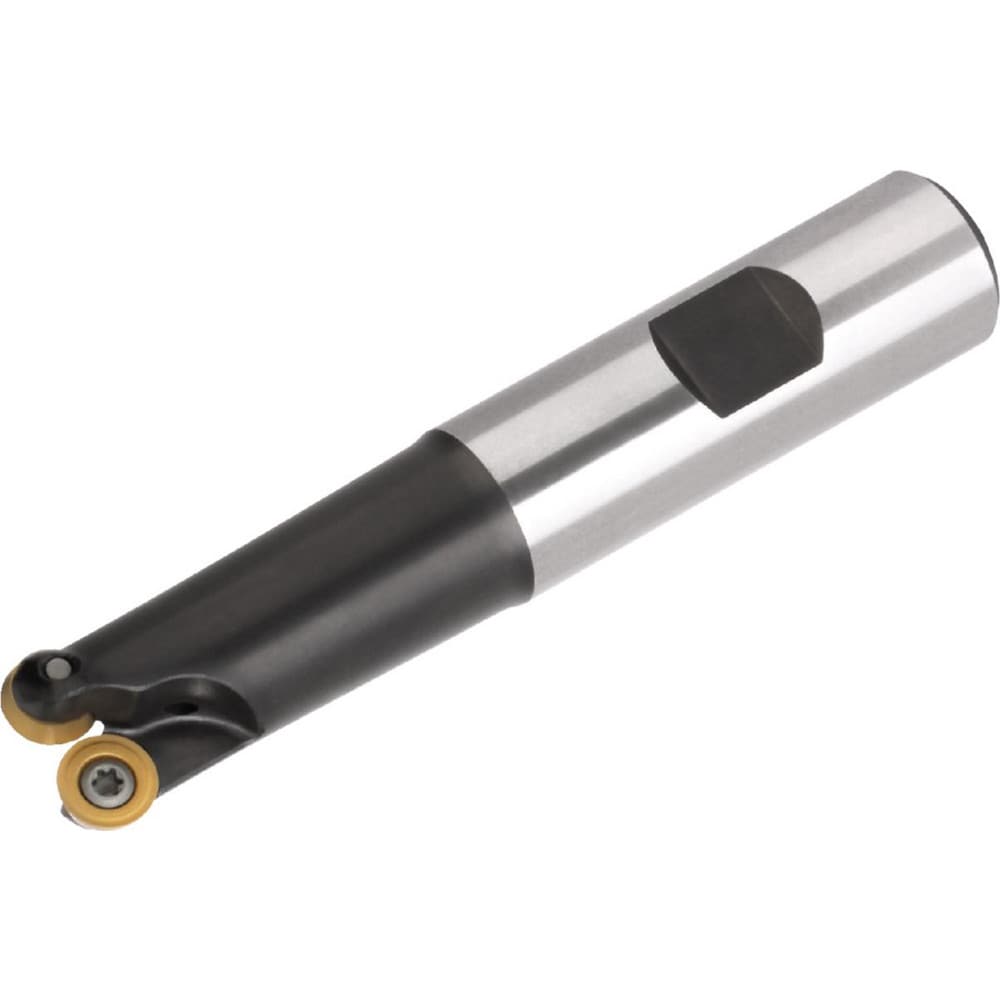

Brand: Widia / Part #: 2646596
Item #: 99735508
Brand: Widia
Model #: 2646596
Product Specifications
| Minimum Cutting Diameter (Decimal Inch) | 0.4350 |
| Maximum Cutting Diameter (Inch) | 3/4 |
| Maximum Depth of Cut (Decimal Inch) | 0.1575 |
| Toolholder Style | M100 |
| Shank Type | Weldon Flat |
| Shank Diameter | 0.7500 |
| Maximum Ramping Angle | 22 |
| Compatible Insert Style | RD.. |
| Insert Holding Method | Screw |
| Compatible Insert Size Code | 0802MO |
| Number Of Cutter Inserts | 2 |
| Overall Length (Decimal Inch) | 4.5300 |
| Series | M100 |
| Flute Type | Straight |
| Maximum Rpm | 26000.000 |
| Shank Length (Decimal Inch) | 2.0300 |
| Functional Length (Decimal Inch) | 4.5300 |
| Head Length (Inch) | 2-1/2 |
| Insert Diameter (mm) | 8.000 |
| Tool Application | Pocketing; Milling; Ramping; Slotting |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Hard Material; Non-Ferrous Metal; Stainless Steel; Cast Iron; Super-alloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; H; K; M; N |
| Number Of Flutes | 2 |
| Coolant Through | Yes |
