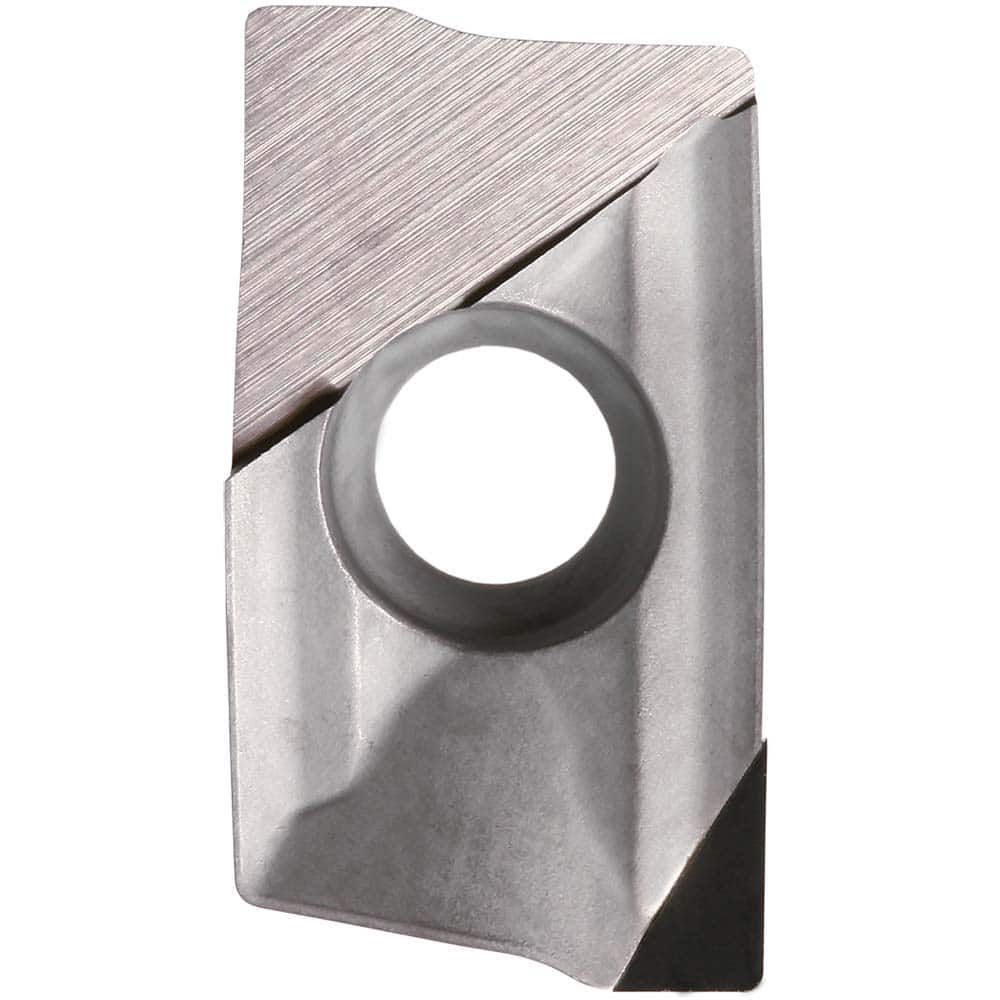

Kyocera - BDMT170402FR KPD001 PCD Milling Insert
Item #: 28509560
Brand: Kyocera
Model #: 8822211
Product Specifications
| Insert Style | BDMT |
| Insert Size | 170402 |
| Material | PCD |
| Manufacturer's Grade | KPD001 |
| Coating | Uncoated |
| Width (mm) | 9.60 |
| Length (Decimal Inch) | 0.1732 |
| Thickness (mm) | 4.9000 |
| Corner Radius (mm) | 0.20 |
| Primary Workpiece Material | N |
| Secondary Workpiece Material | S |
| Hole Diameter (mm) | 4.4000 |
| Rake | Positive |
| Coating Process | Uncoated |
| Shape | Parallelogram |
| Insert Hand | Right Hand |
| Chipbreaker | FR |
| Cutting Edge Style | Sharp |
| Manufacturers Catalog Number | BDMT170402FRKPD001 |
| ISO Number | BDMT170402FR |
| Length of Cut (mm) | 17.0000 |
| Cutting Direction | Right Hand |
