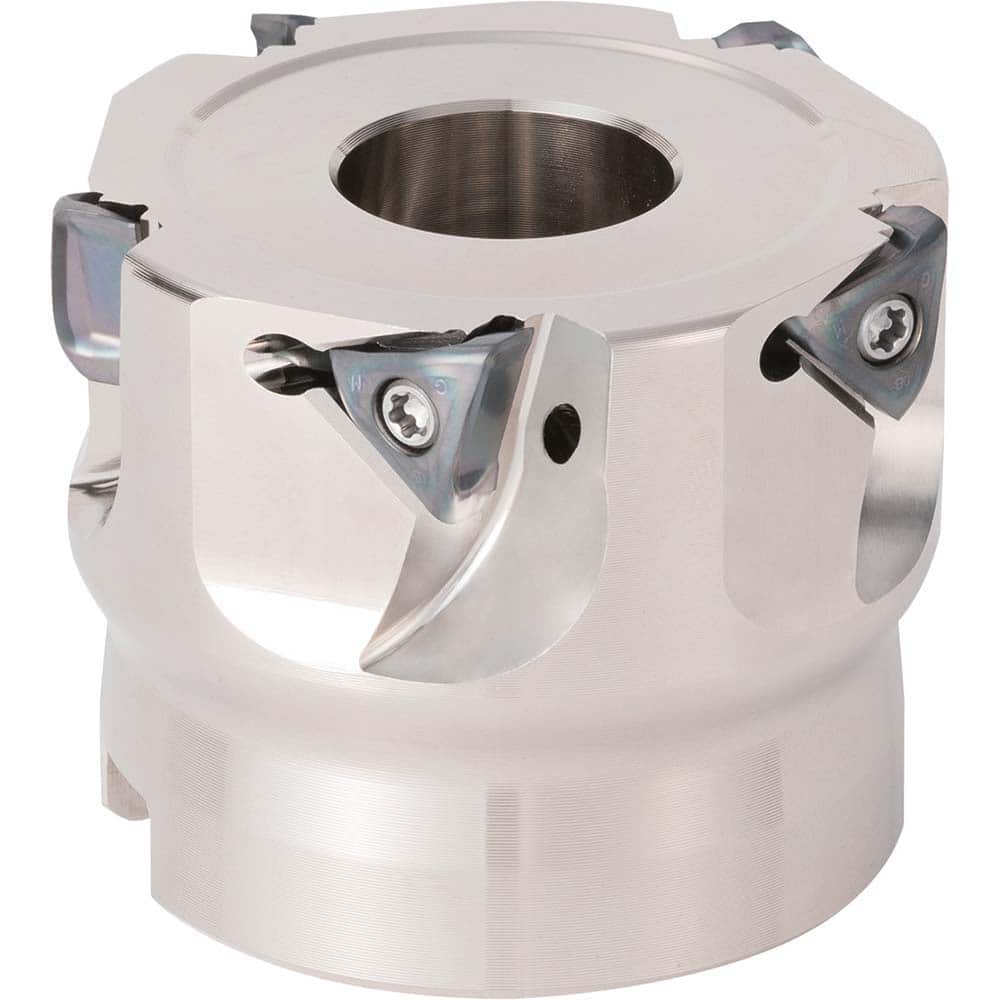

Kyocera - Indexable Square-Shoulder Face Mills; Cutting Diameter (mm): 50.00 ; Cutting Diameter (Decimal Inch): 1.9685 ; Arbor Hole Diameter (mm): 22.00 ; Lead Angle: 90 ; Overall Height (mm): 40.00000 ; Insert Compatibility: TOMT06?
Item #: 28506210
Brand: Kyocera
Model #: 8864754
Product Specifications
Indexable Square-Shoulder Face Mills; Cutting Diameter (mm): 50.00 ; Cutting Diameter (Decimal Inch): 1.9685 ; Arbor Hole Diameter (mm): 22.00 ; Lead Angle: 90 ; Overall Height (mm): 40.00000 ; Insert Compatibility: TOMT06?
| Cutting Diameter (mm) | 50.00 |
| Cutting Diameter (Decimal Inch) | 1.9685 |
| Arbor Hole Diameter (mm) | 22.00 |
| Lead Angle | 90 |
| Overall Height (mm) | 40.00000 |
| Insert Compatibility | TOMT06? |
| Series | MEV |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 6.00 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 5 |
| Insert Holding Method | Screw |
| Cutter Style | MEV |
| Number of Flutes | 5 |
| Keyway Width (mm) | 10.4000 |
| Keyway Depth (Inch) | 0.2480 |
| Keyway Depth (Decimal Inch) | 0.2480 |
| Maximum RPM | 13000.000 |
| Pitch | Standard |
| ISO Number | MEV050R-06-5T-M |
| Counterbore Diameter (Decimal Inch) | 0.7087 |
| Toolholder Material | Steel |
