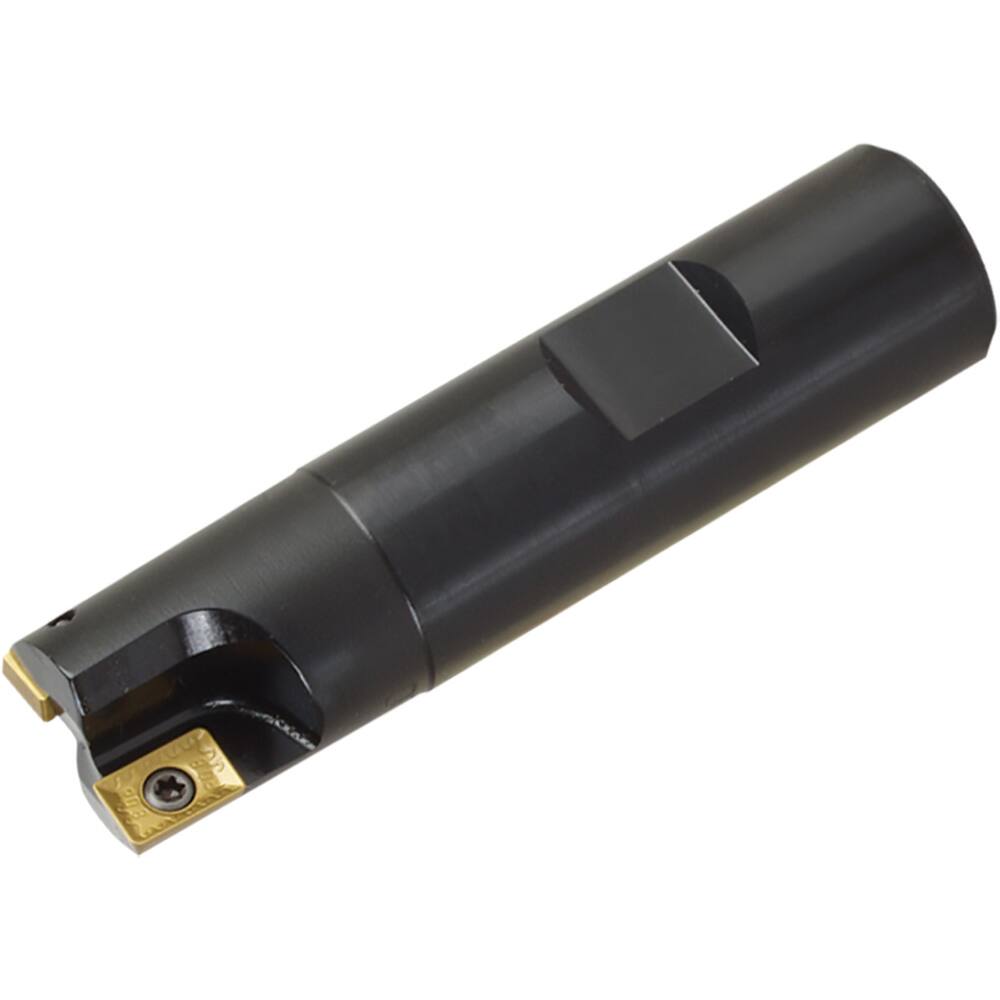

Kyocera - Indexable Square-Shoulder End Mills; Cutting Diameter (Decimal Inch): 0.5625 ; Cutting Diameter (Inch): 0.5625 ; Shank Type: Cylindrical ; Shank Diameter (Inch): 0.5000 ; Overall Length/Projection (Decimal Inch): 2.7800 ; Lead Angle: 90
Item #: 28496388
Brand: Kyocera
Model #: 8600990
Product Specifications
Indexable Square-Shoulder End Mills; Cutting Diameter (Decimal Inch): 0.5625 ; Cutting Diameter (Inch): 0.5625 ; Shank Type: Cylindrical ; Shank Diameter (Inch): 0.5000 ; Overall Length/Projection (Decimal Inch): 2.7800 ; Lead Angle: 90
| Cutting Diameter (Decimal Inch) | 0.5625 |
| Cutting Diameter (Inch) | 0.5625 |
| Shank Type | Cylindrical |
| Shank Diameter (Inch) | 0.5000 |
| Overall Length/Projection (Decimal Inch) | 2.7800 |
| Lead Angle | 90 |
| Series | EM |
| Through Coolant | Noncoolant Through |
| Maximum Depth of Cut (Decimal Inch) | 0.3700 |
| Insert Holding Method | Screw |
| End Mill Type | End Mill |
| Cutter Style | EM |
| Number of Flutes | 1 |
| Head Length (Inch) | 1.0000 |
| Weldon Flat | No |
| Insert Compatibility | XPMT0902? |
| Shank Length (Decimal Inch) | 1.7800 |
| Toolholder Material | Steel |
| Rake Angle | 3 (Axial);-7 (Radial) |
| Multi-Use Tool | Yes |
| Hand of Holder | Right Hand |
