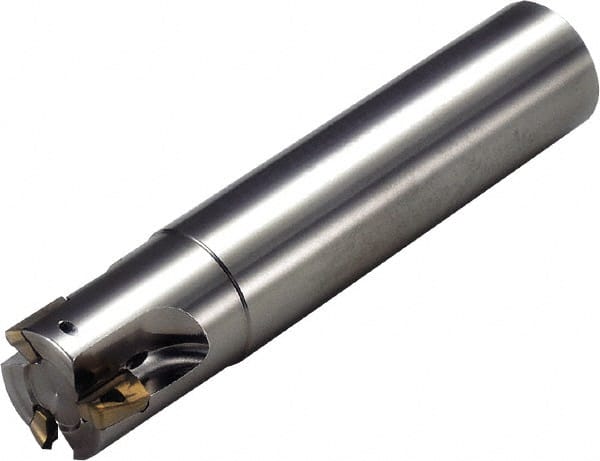

Kyocera - Indexable Square-Shoulder End Mills; Cutting Diameter (mm): 40.00 ; Cutting Diameter (Decimal Inch): 1.5748 ; Shank Type: Cylindrical ; Shank Diameter (mm): 32.0000 ; Overall Length/Projection (mm): 250.00 ; Lead Angle: 90
Item #: 28496040
Brand: Kyocera
Model #: 8847270
Product Specifications
Indexable Square-Shoulder End Mills; Cutting Diameter (mm): 40.00 ; Cutting Diameter (Decimal Inch): 1.5748 ; Shank Type: Cylindrical ; Shank Diameter (mm): 32.0000 ; Overall Length/Projection (mm): 250.00 ; Lead Angle: 90
| Cutting Diameter (mm) | 40.00 |
| Cutting Diameter (Decimal Inch) | 1.5748 |
| Shank Type | Cylindrical |
| Shank Diameter (mm) | 32.0000 |
| Overall Length/Projection (mm) | 250.00 |
| Lead Angle | 90 |
| Series | MEC |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (Decimal Inch) | 0.6181 |
| Insert Holding Method | Screw |
| End Mill Type | End Mill |
| Cutter Style | MEC |
| Number of Flutes | 3 |
| Head Length (mm) | 65.00 |
| Weldon Flat | No |
| Insert Compatibility | BDMT1704?ER-JT; BDMT1704?ER-JS; BDGT1704?FR-JA; BDMT1704?FR |
| Shank Length (mm) | 185.000 |
| Maximum RPM | 25000.000 |
| Toolholder Material | Steel |
| Rake Angle | 17 (Axial);-7 (Radial) |
| Multi-Use Tool | Yes |
| Hand of Holder | Right Hand |
