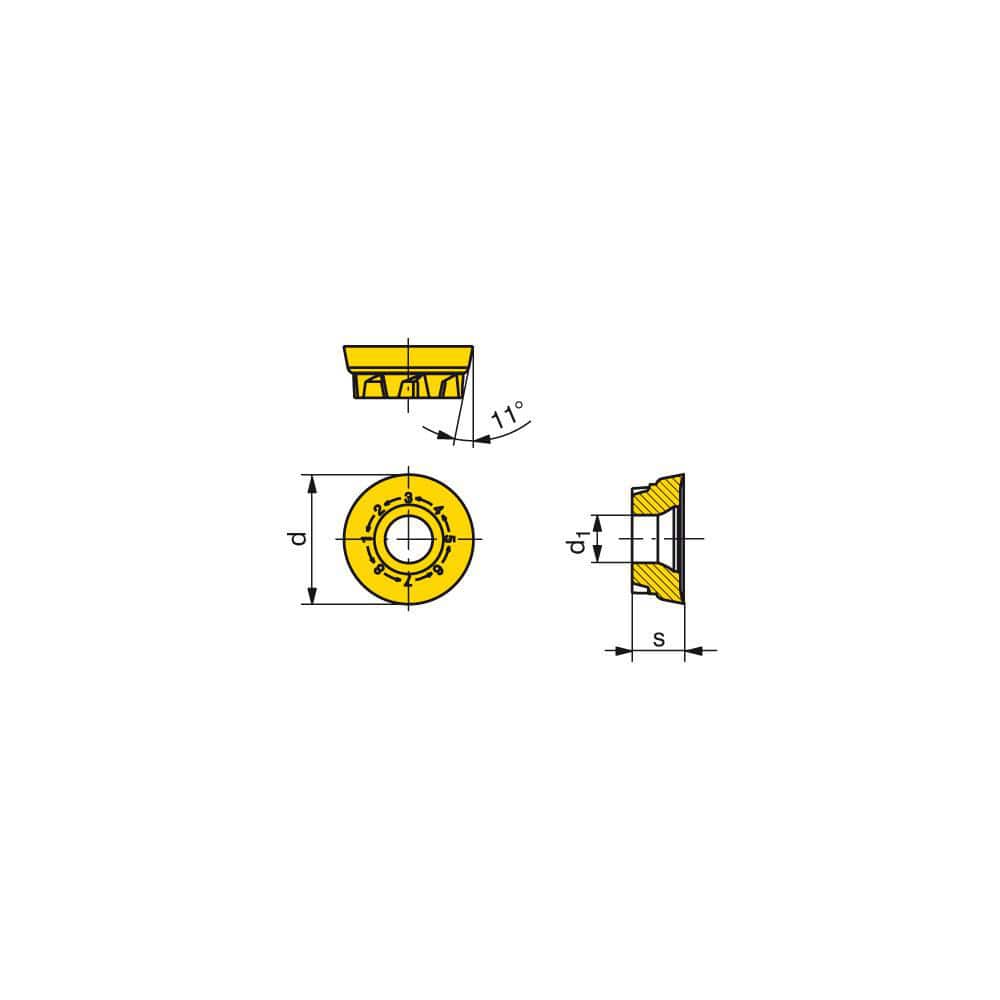

Milling Insert: RPHX 1204M4SN-M50 CTCM245, CTCM245, Solid Carbide N/A Finish,
Item #: 26222919
Brand: Ceratizit
Model #: 5105092501
Product Specifications
| Insert Style | RPHX |
| Insert Size Code | 1204 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | CTCM245 |
| Inscribed Circle (Decimal Inch) | 0.4724 |
| Corner Radius (Decimal Inch) | 0.2362 |
| Insert Hand | Neutral |
| Relief Angle | 11.00 |
| Series | RPHX |
| Coating Process | CVD |
| Hole Diameter (Decimal Inch) | 0.1732 |
| Maximum Depth of Cut (Decimal Inch) | 0.2362 |
| Number Of Cutting Edges | 4 |
| Cutting Edge Effective Length (Decimal Inch) | 0.2362 |
| Insert Shape | Round |
| Rake | Positive |
| Primary Workpiece Material | Stainless Steel; Steel |
| Primary Workpiece Material Code | P; M |
| Secondary Workpiece Material | Super-Alloys & Titanium; Non-ISO |
| Secondary Workpiece Material Code | S |
| Ansi Code | RPHX 1204M4SN-M50 CTCM245 |
| Iso Code | RPHX 1204M4SN-M50 CTCM245 |
| Chip Breaker | M50 |
| Coating/Finish | Coated |
| Thickness (Decimal Inch - 4 Decimals) | 0.1874 |
