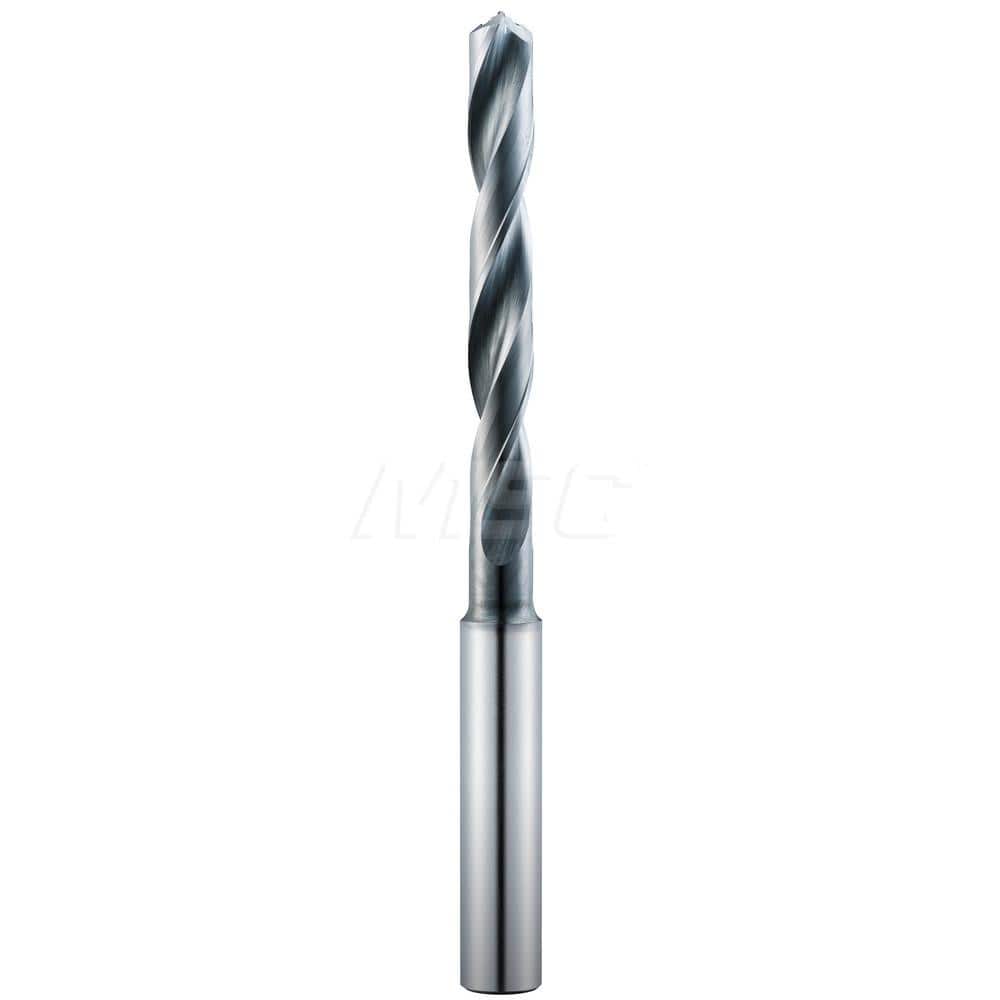

Jobber Length Drill Bit: 0.75″ Dia, 135 °, Solid Carbide Ti-NAMITE-A Finish, 6.0236″ OAL, Right Hand Cut, Spiral Flute, Straight-Cylindrical Shank, Series 143M
Item #: 26153064
Brand: SGS
Model #: 56871
Product Specifications
| Drill Bit Size (Decimal Inch) | 0.7500 |
| Drill Bit Size (Inch) | 3/4 |
| Drill Bit Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Drill Bit Finish/Coating | Ti-NAMITE-A |
| Drill Point Angle (Degrees) | 135 |
| Spiral Type | Single |
| Flute Type | Spiral |
| Point Type | Spiral |
| Coolant Through | Yes |
| Shank Type | Straight-Cylindrical |
| Number of Flutes | 2 |
| Shank Diameter (Decimal Inch) | 0.7874 |
| Overall Length (mm) | 153.00 |
| Overall Length (Decimal Inch) | 6.0236 |
| Series | 143M |
| Flute By Diameter Ratio | 5xD |
| Shank Diameter (mm) | 20.00 |
| Drill Point Length (mm) | 101.00 |
| Drill Point Length (Decimal Inch) | 3.9764 |
| Drill Bit Diameter Tolerance | h6 |
| Drill Bit Size Range (Decimal Inch) | 0.6500+ |
| Material Grade | Micrograin |
