Turning Insert: DCMT21.52PS GH730, Carbide
Item #: 20870432
Brand: Tungaloy
Model #: 6820984

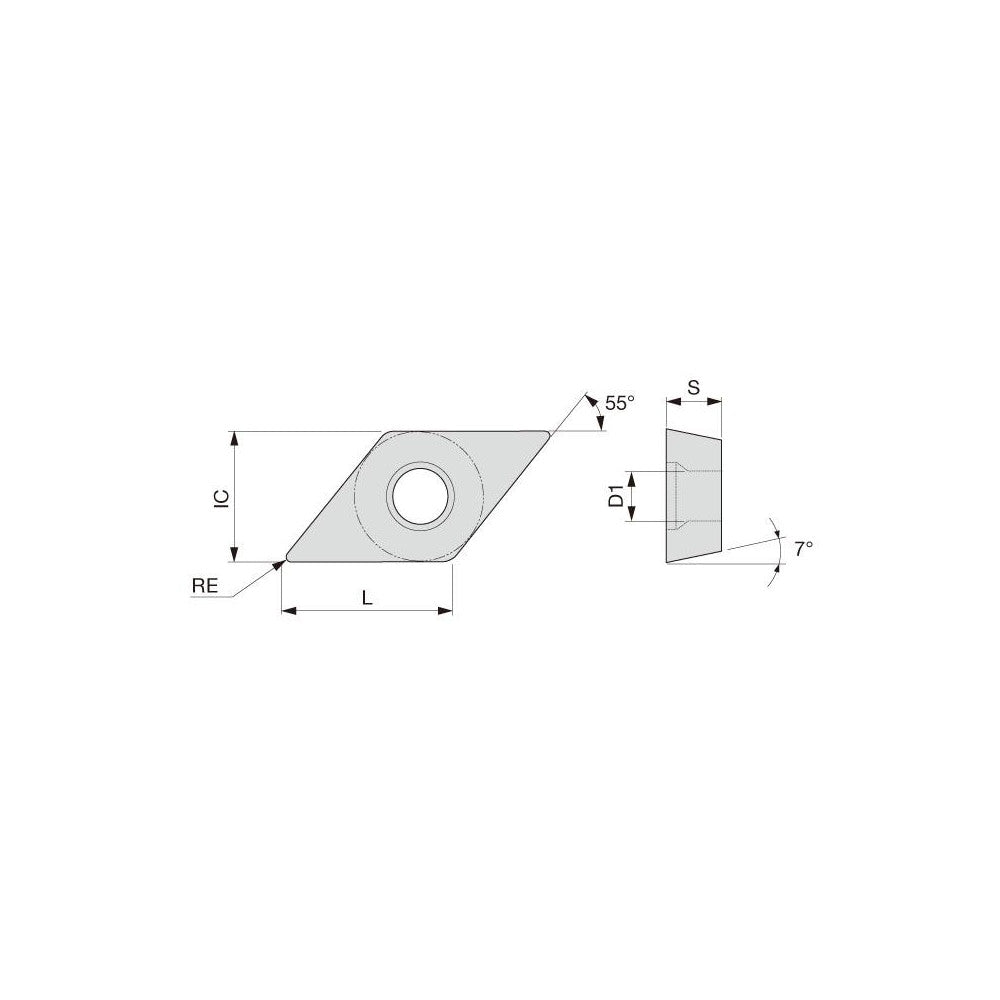

Product Specifications
| ANSI Insert Code | DCMT21.52 |
| ISO Insert Code | DCMT070208 |
| Relief Angle | 7 |
| Insert Style | DCMT |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Included Angle | 55 |
| Manufacturer Grade | GH730 |
| Coating/Finish | TiCNO |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 3/32 |
| Insert Thickness (Decimal Inch) | 0.0938 |
| Series | DCMT-PS |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Inscribed Circle (Inch) | 1/4 |
| Insert Material | Carbide |
| Insert Shape | D - Diamond (Rhombic) 55-Deg |
| Chip Breaker Operation | Medium Machining; Finishing |
| Grade Characteristics | Steel (P) - Moderate Wear-Resistance and Toughness to High Toughness; Stainless Steel (M) - Moderate Wear-Resistance and Toughness to High Toughness |
| Side Clearance | Positive |
| Number Of Cutting Edges | 2 |
| Insert Shape Code | D |
| Hole Diameter (Decimal Inch) | 0.1100 |
| Maximum Depth of Cut (Decimal Inch) | 0.0984 |
| Insert Holding Method | Screw |
| Width (Inch) | 1/4 |
| Clearance Code | C |
| Tolerance Code | M |
| Coating Process | PVD |
| Length Range (Decimal Inch) | 0.6000 - 0.6500 |
| Rake | Positive |
| Insert Length (Decimal Inch) | 0.6140 |
| Primary Workpiece Material | Stainless Steel; Steel |
| Primary Workpiece Material Code | P; M |
| Iso Code | DCMT21.52-PS GH730 |
| Standards | ISO; ANSI |
| Manufacturers Catalog Number | 6820984 |
| Material Grade | M15; P15; M30; P30 |
| Coating Classification | PVD |
| Chip Breaker | PS |
| Rake Angle | 10 |
| Cutting Edge Style | Honed |
| Industry Standard Number | DCMT 21.52 PS |
| Width (Decimal Inch - 4 Decimals) | 0.2500 |
| Multi-Use Tool | Yes |
| Full Radius | No |
| Multi-Use Application | Back Boring; Facing; Turning; Back Turning; Boring |
| ANSI Size Code | 21.52 |
| ISO Size Code | 070208 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 21.52 |
