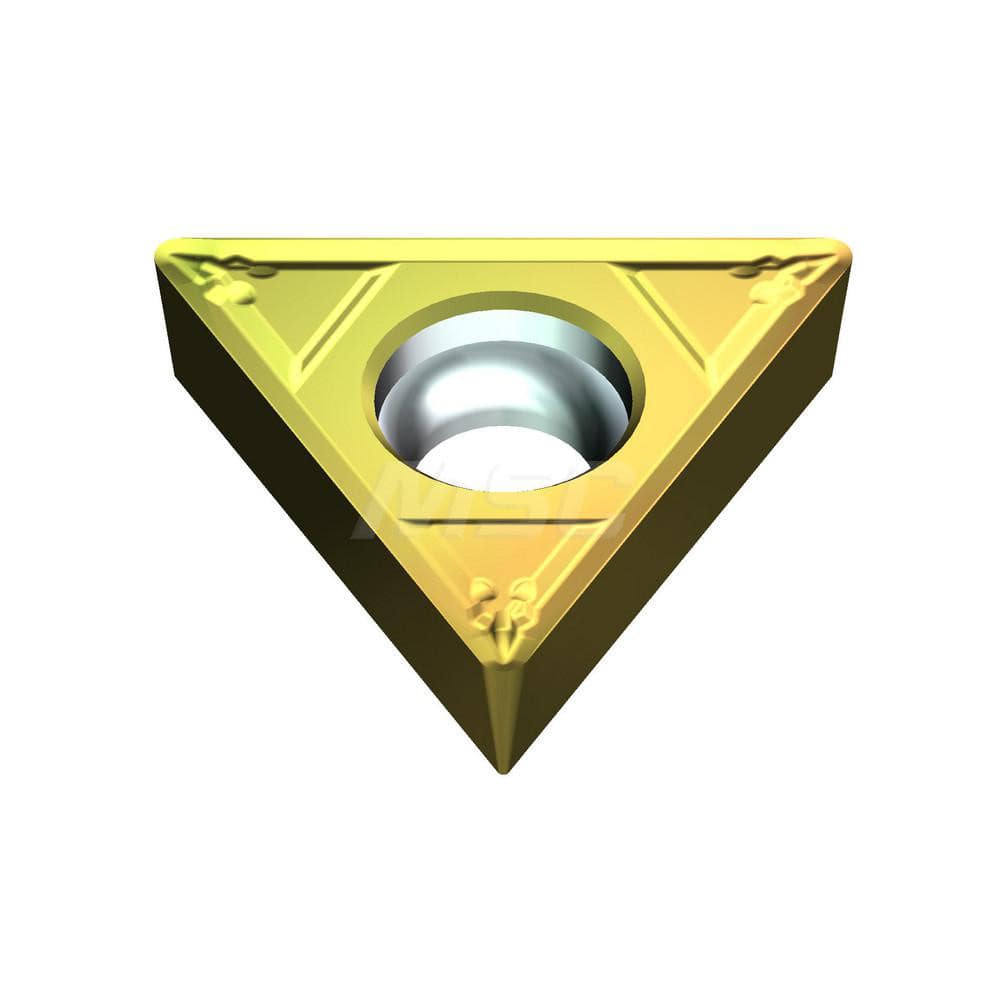

Turning Insert: TPMT332ELB T1500Z, Cermet AlN Finish, Neutral, 0.6496″ Long, 3/8″ Inscribed Circle, 0.0315″ Corner Radius, 60.0 ° N/A Triangle, Series T1500Z
Item #: 23223472
Brand: Sumitomo
Model #: 194ACPN
Product Specifications
| Insert Style | TPMT |
| Insert Size Code | 332 |
| Insert Shape | Triangle |
| Insert Material | Cermet |
| Manufacturer Grade | T1500Z |
| Hole Diameter (Decimal Inch) | 0.1733 |
| Inscribed Circle (Inch) | 3/8 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Insert Holding Method | Screw |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.1874 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Included Angle | 60.0 |
| Relief Angle | 11 |
| Series | T1500Z |
| Rake | Positive |
| Insert Length (Decimal Inch) | 0.6496 |
| Primary Workpiece Material Code | P; K; M |
| Secondary Workpiece Material Code | P; K; M |
| Ansi Code | TPMT332ELBT1500Z |
| Chip Breaker | ELB |
| Coating/Finish | AlN |
