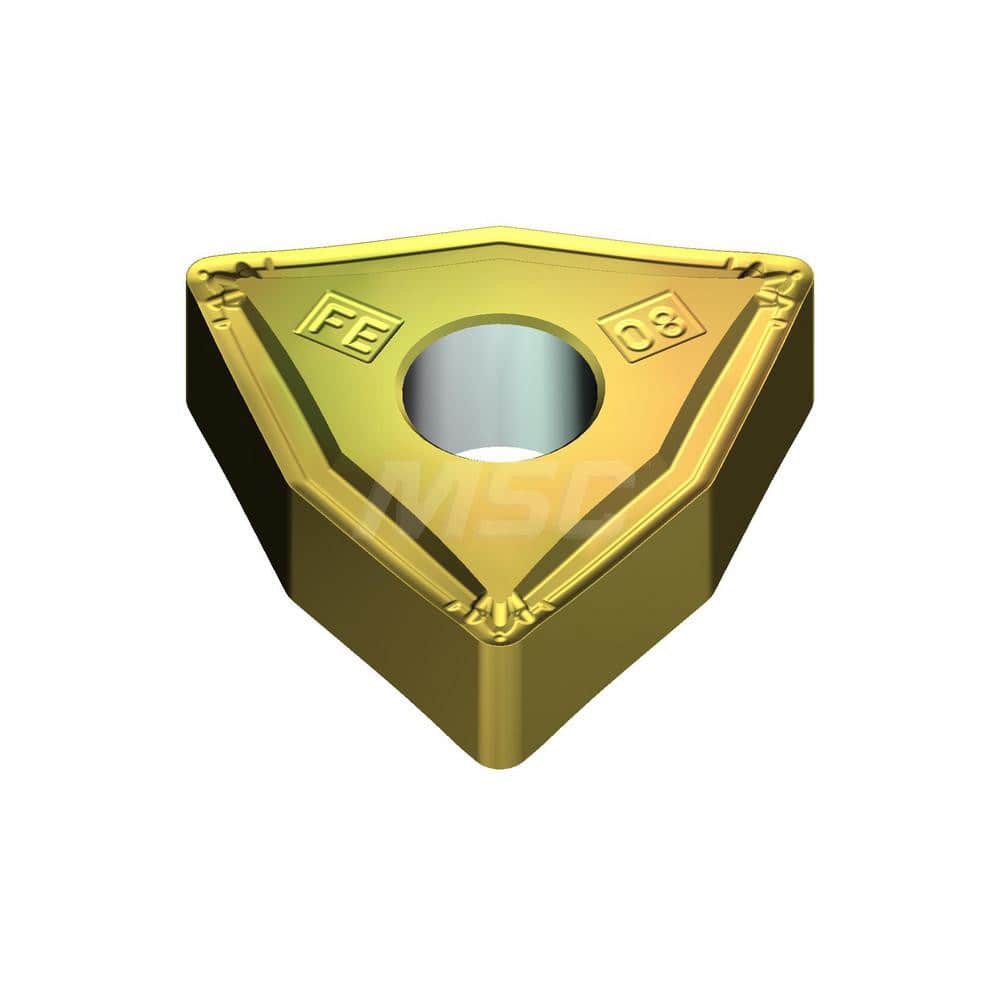

Turning Insert: WNMG4305EFE T1500Z, Cermet AlN Finish, Neutral, 0.3425″ Long, 1/2″ Inscribed Circle, 0.0079″ Corner Radius, 80.0 ° N/A Trigon, Series T1500Z
Item #: 23221336
Brand: Sumitomo
Model #: 194ACUG
Product Specifications
| Insert Style | WNMG |
| Insert Size Code | 430.5 |
| Insert Shape | Trigon |
| Insert Material | Cermet |
| Manufacturer Grade | T1500Z |
| Hole Diameter (Decimal Inch) | 0.2032 |
| Inscribed Circle (Inch) | 1/2 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Insert Holding Method | Pin; Clamp |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.1874 |
| Corner Radius (Decimal Inch) | 0.0079 |
| Included Angle | 80.0 |
| Relief Angle | 0 |
| Series | T1500Z |
| Rake | Negative |
| Insert Length (Decimal Inch) | 0.3425 |
| Primary Workpiece Material Code | P; K; M |
| Secondary Workpiece Material Code | P; K; M |
| Ansi Code | WNMG430.5EFET1500Z |
| Chip Breaker | EFE |
| Coating/Finish | AlN |
