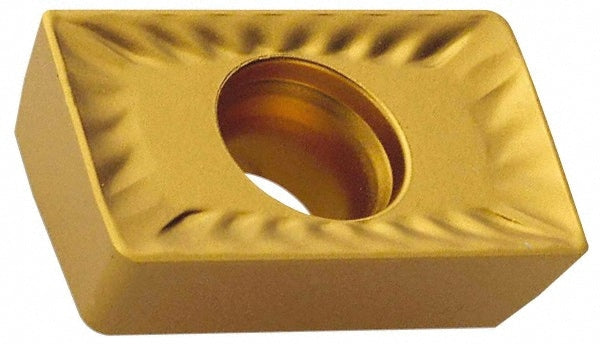

Milling Insert: APKT080304R IN2005 IN2005, Solid Carbide
Item #: 85533412
Brand: Ingersoll Cutting Tools
Model #: 5809718
Product Specifications
| Insert Style | APLH |
| Insert Size | 32 |
| Insert Material | Solid Carbide |
| Insert Shape | Parallelogram |
| Manufacturer Grade | IN2005 |
| Corner Radius (Decimal Inch) | 0.0150 |
| Number Of Cutting Edges | 2 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1360 |
| Coating/Finish | TiAlN |
| Relief Angle | 11.00 |
| Insert Size Code | 32 |
| Material Grade | Micrograin |
| Inscribed Circle (Decimal Inch) | 0.2470 |
| Thickness Range (Decimal Inch) | 0.1250 to 0.1500 |
| Inscribed Circle Range (Decimal Inch) | 0.2000 to 0.3000 |
| Length Range (Decimal Inch) | 0.0000 to 0.3200 |
| Insert Hand | Right Hand |
| Series | APLH |
| Coating Process | PVD |
| Rake | Positive |
| Primary Workpiece Material | Stainless Steel; Cast Iron; Superalloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; K; M |
| Ansi Code | APLH32R01 IN2005 |
| Iso Code | APKT080304R IN2005 |
| Standards | ISO; ANSI |
| Cutting Edge Style | Sharp |
| Manufacturers Catalog Number | 5809718 |
| Cutter Series Compatibility | 12J1M |
| Chip Breaker | None |
| UNSPSC Code | 23291601 |
| Material Application | Stainless Steel; Cast Iron; Superalloys & Titanium; Steel |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Single |
| Included Angle Degree | 85 |
| Width (Decimal Inch - 4 Decimals) | 0.2470 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.3110 |
