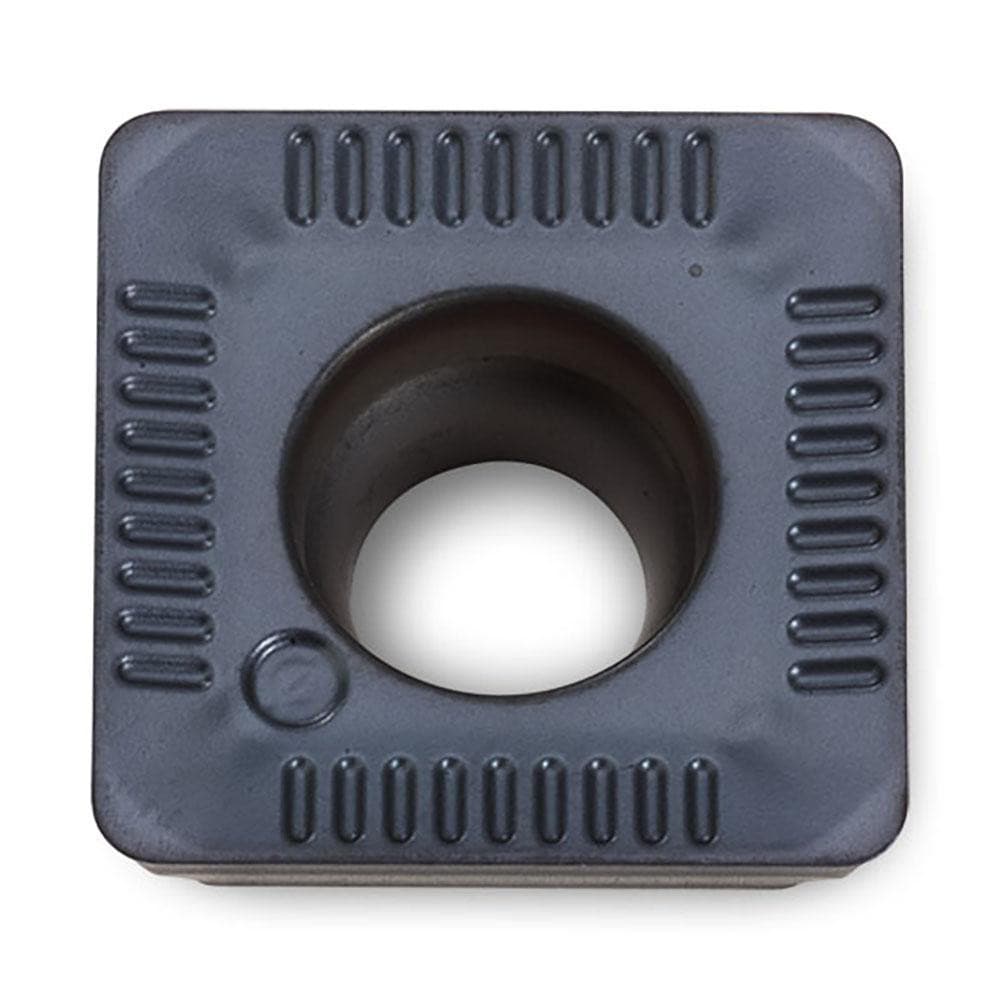

Milling Insert: SHLT090308N-HR IN2005 IN2005, Solid Carbide
Item #: 85533529
Brand: Ingersoll Cutting Tools
Model #: 5804825
Product Specifications
| Insert Style | SHLP |
| Insert Size | 32 |
| Insert Material | Solid Carbide |
| Insert Shape | Square |
| Manufacturer Grade | IN2005 |
| Corner Radius (Decimal Inch) | 0.0310 |
| Number Of Cutting Edges | 4 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1500 |
| Coating/Finish | TiAlN |
| Insert Size Code | 32 |
| Material Grade | Micrograin |
| Width (Inch) | 3/8 |
| Length (Inch) | 3/8 |
| Inscribed Circle (Inch) | 3/8 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Thickness Range (Decimal Inch) | 0.1500 to 0.1750 |
| Corner Radius (Inch) | 1/32 |
| Inscribed Circle Range (Decimal Inch) | 0.3500 to 0.4000 |
| Length Range (Decimal Inch) | 0.3200 to 0.4000 |
| Insert Hand | Neutral |
| Series | SHLP |
| Coating Process | PVD |
| Rake | Positive |
| Primary Workpiece Material | Stainless Steel; Cast Iron; Superalloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; K; M |
| Ansi Code | SHLP32-01 IN2005 |
| Iso Code | SHLT090308N-HR IN2005 |
| Standards | ISO; ANSI |
| Cutting Edge Style | Corner Rounded |
| Manufacturers Catalog Number | 5804825 |
| Cutter Series Compatibility | 25J3F; 15N1F; 15W7V |
| Chip Breaker | HR |
| UNSPSC Code | 23291601 |
| Material Application | Stainless Steel; Cast Iron; Superalloys & Titanium; Steel |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Single |
| Included Angle Degree | 90 |
| Width (Decimal Inch - 4 Decimals) | 0.3750 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.3750 |
