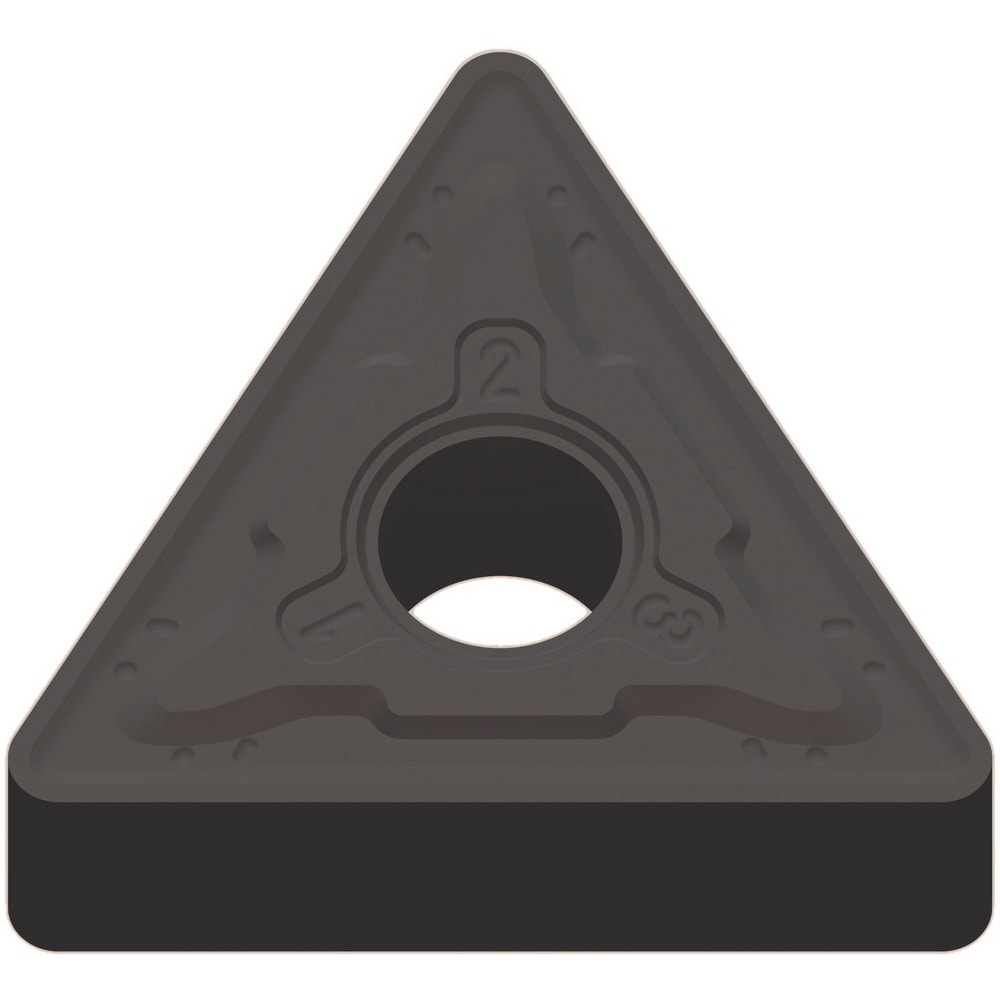

Turning Insert: TNMG543RP MC6035, Carbide
Item #: 04504346
Brand: Mitsubishi
Model #: 10535141
Product Specifications
| ANSI Insert Code | TNMG543 |
| ISO Insert Code | TNMG270612 |
| Relief Angle | 0 |
| Insert Style | TNMG |
| Corner Radius (mm) | 1.20 |
| Corner Radius (Inch) | 3/64 |
| Corner Radius (Decimal Inch) | 0.0469 |
| Included Angle | 60 |
| Manufacturer Grade | MC6035 |
| Coating/Finish | CVD |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 1/4 |
| Insert Thickness | 6.35 |
| Insert Thickness (Decimal Inch) | 0.2500 |
| Inscribed Circle (Decimal Inch) | 0.6250 |
| Inscribed Circle (Inch) | 5/8 |
| Inscribed Circle (mm) | 15.88 |
| Insert Material | Carbide |
| Insert Shape | T - Triangle |
| Chip Breaker Operation | Medium Machining; Roughing |
| Grade Characteristics | Steel (P) - Moderate Wear-Resistance and Toughness |
| Side Clearance | Negative |
| Number Of Cutting Edges | 6 |
| Insert Shape Code | T |
| Clearance Code | N |
| Tolerance Code | M |
| Primary Workpiece Material Code | P |
| Chip Breaker | RP |
| ANSI Size Code | 543 |
| ISO Size Code | 270612 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 5 |
