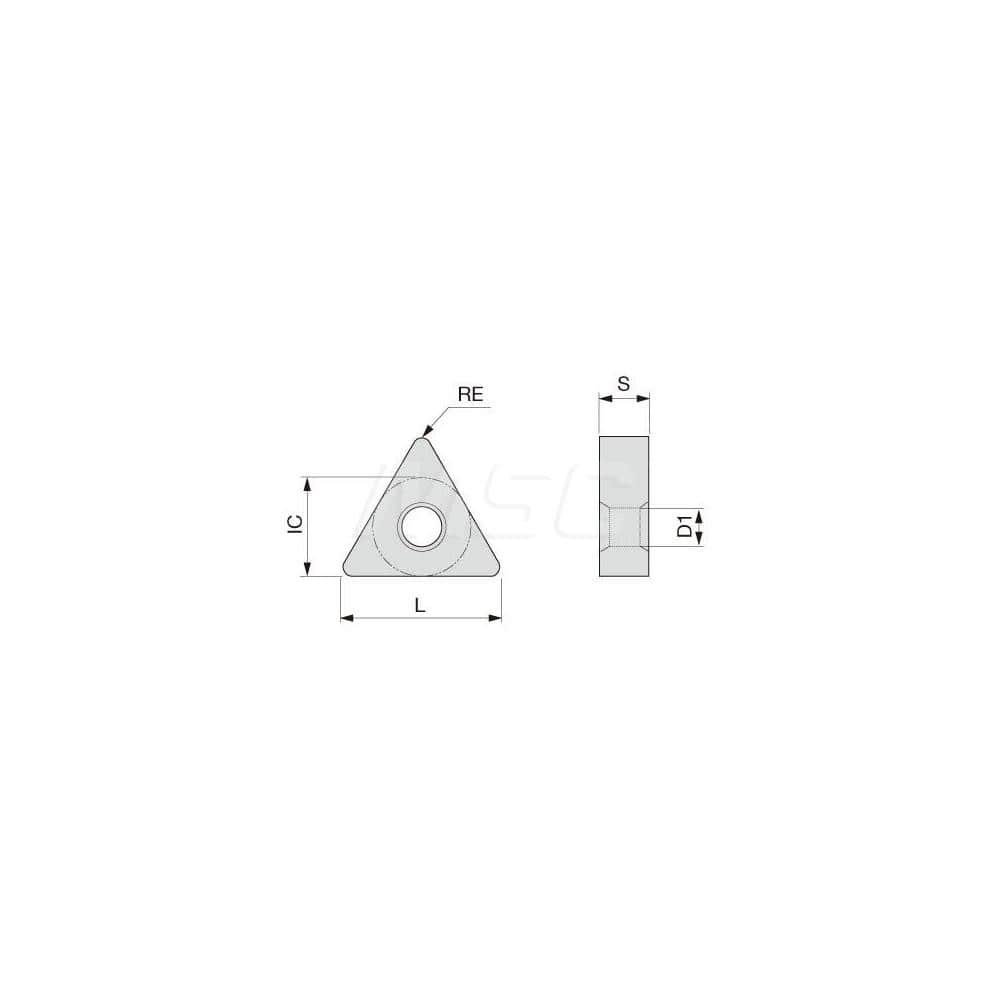

Turning Insert: TNMG331L-S AH6225, Solid Carbide TiAlN & TiCN Finish, Left Hand, 3/8″ Inscribed Circle, 0.0160″ Corner Radius, 60.0 ° N/A Triangle, Series TNMG
Item #: 20884532
Brand: Tungaloy
Model #: 6827567
Product Specifications
| Insert Style | TNMG |
| Insert Size Code | 331 |
| Insert Shape | Triangle |
| Insert Material | Solid Carbide |
| Manufacturer Grade | AH6225 |
| Hole Diameter (Decimal Inch) | 0.1500 |
| Maximum Depth of Cut (Decimal Inch) | 0.1575 |
| Inscribed Circle (Inch) | 3/8 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Insert Holding Method | Clamp |
| Insert Hand | Left Hand |
| Insert Thickness (Decimal Inch) | 0.1870 |
| Corner Radius (Decimal Inch) | 0.0160 |
| Included Angle | 60.0 |
| Relief Angle | 0 |
| Series | TNMG |
| Coating Process | PVD |
| Rake | Negative |
| Wiper Edge | No |
| Number Of Cutting Edges | 6 |
| Primary Workpiece Material | Stainless Steel; Steel |
| Primary Workpiece Material Code | P; M |
| Ansi Code | TNMG331LSAH6225 |
| Iso Code | TNMG160404L-S |
| Chip Breaker | S |
| Coating/Finish | TiCN; TiAlN |
