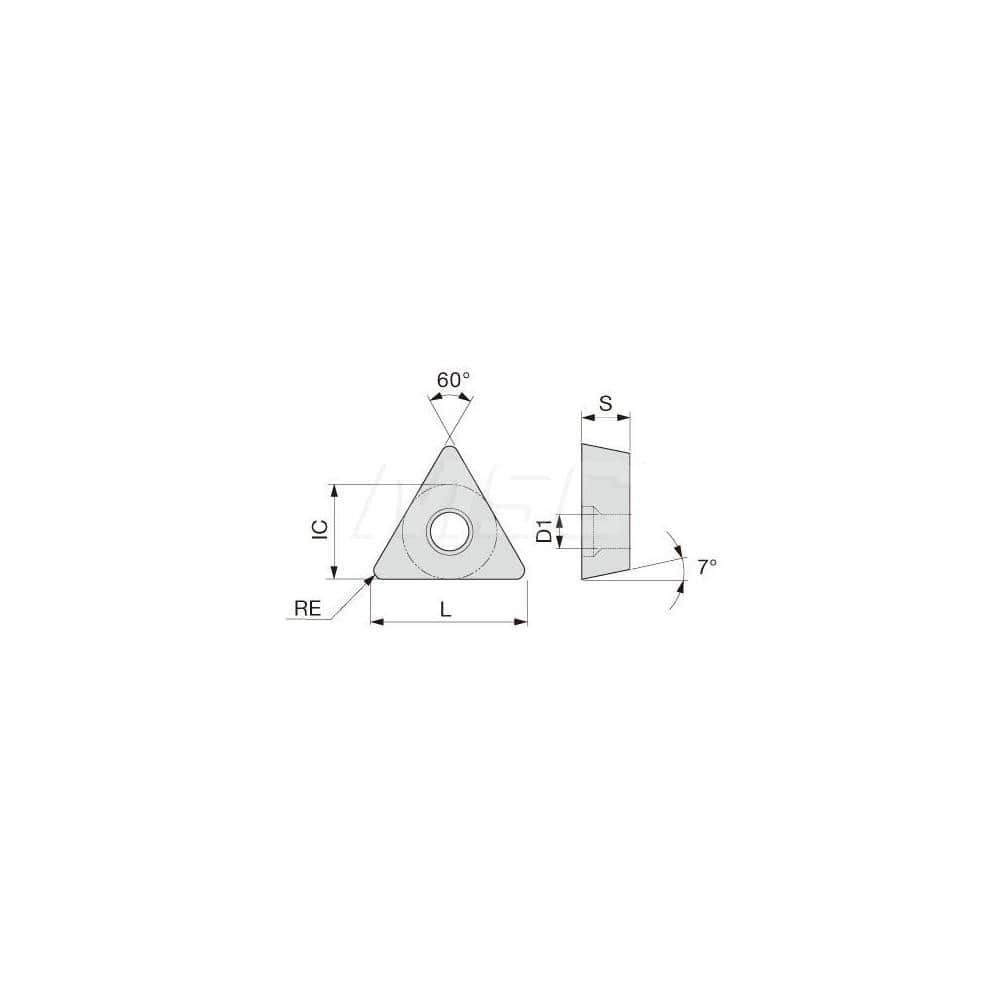

Turning Insert: TCGT21.51-01 TH10, Solid Carbide Uncoated Finish, Neutral, 1/4″ Inscribed Circle, 0.0160″ Corner Radius, 60.0 ° N/A Triangle, Series TCGT
Item #: 20864138
Brand: Tungaloy
Model #: 6807675
Product Specifications
| Insert Style | TCGT |
| Insert Size Code | 21.51 |
| Insert Shape | Triangle |
| Insert Material | Solid Carbide |
| Manufacturer Grade | TH10 |
| Hole Diameter (Decimal Inch) | 0.1100 |
| Maximum Depth of Cut (Decimal Inch) | 0.0197 |
| Inscribed Circle (Inch) | 1/4 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Insert Holding Method | Screw |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.0940 |
| Corner Radius (Decimal Inch) | 0.0160 |
| Included Angle | 60.0 |
| Relief Angle | 7 |
| Series | TCGT |
| Coating Process | Uncoated |
| Rake | Positive |
| Wiper Edge | No |
| Number Of Cutting Edges | 3 |
| Primary Workpiece Material | Hard Material; Non-Ferrous Metal; Cast Iron; Super-alloys & Titanium |
| Primary Workpiece Material Code | S; H; K; N |
| Ansi Code | TCGT21.5101TH10 |
| Iso Code | TCGT21.51-01 TH10 |
| Chip Breaker | 01 |
| Coating/Finish | Uncoated |
