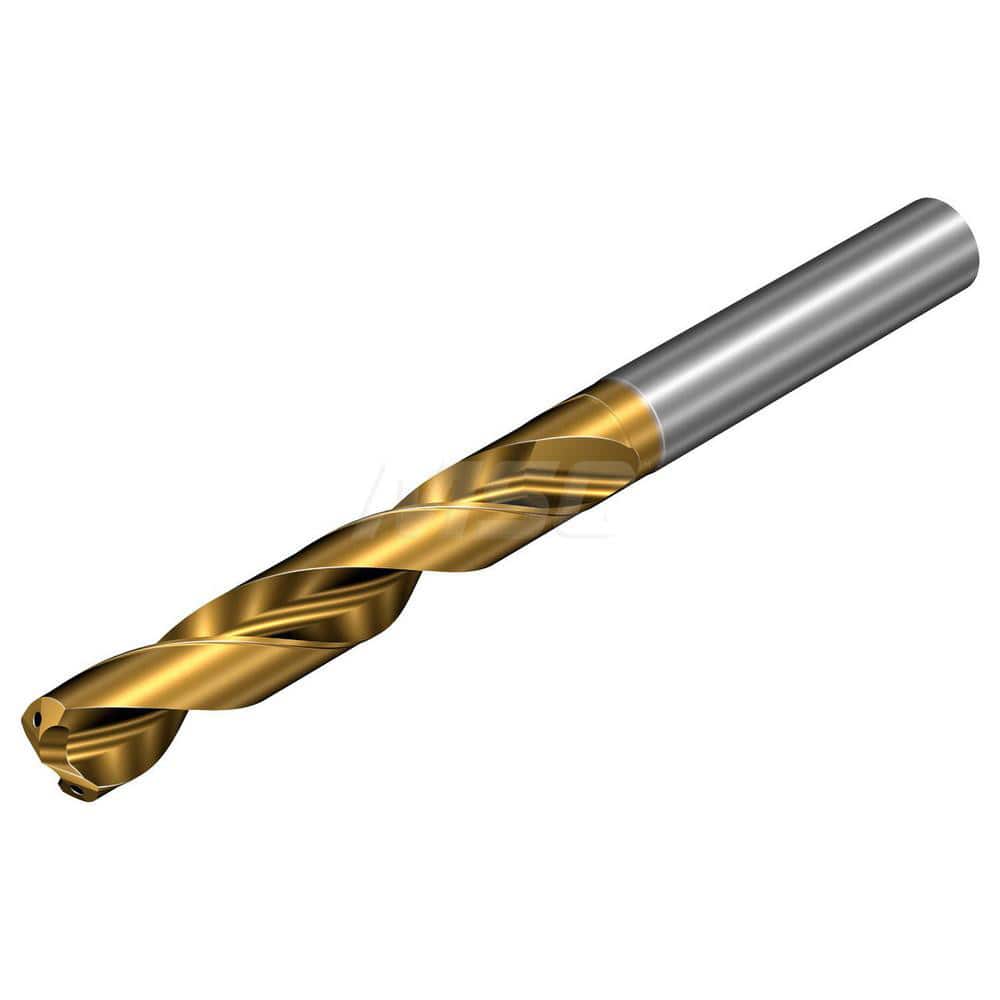

Jobber Length Drill Bit: 0.7086″ Dia, 147 °, Solid Carbide TiAlSiN, TiSiN Finish, 5.6299″ OAL, Right Hand Cut, Spiral Flute, Straight-Cylindrical Shank, Series CoroDrill 860
Item #: 20753976
Brand: Sandvik Coromant
Model #: 8151483
Product Specifications
| Drill Bit Size (Decimal Inch) | 0.7086 |
| Drill Bit Size (mm) | 18.00 |
| Drill Bit Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Drill Point Angle (Degrees) | 147 |
| Flute Type | Spiral |
| Point Type | Split |
| Coolant Through | Yes |
| Shank Type | Straight-Cylindrical |
| Shank Diameter (Decimal Inch) | 0.7086 |
| Overall Length (Decimal Inch) | 5.6299 |
| Flute Length (Decimal Inch) | 3.6614 |
| Series | CoroDrill 860 |
| Tool Application | Holemaking |
| Flute Length x Diamter Ratio | 4xD |
| Flute By Diameter Ratio | 4xD |
| Maximum Drilling Depth (Decimal Inch) | 2.7559 |
| Drill Point Length (Decimal Inch) | 0.1049 |
