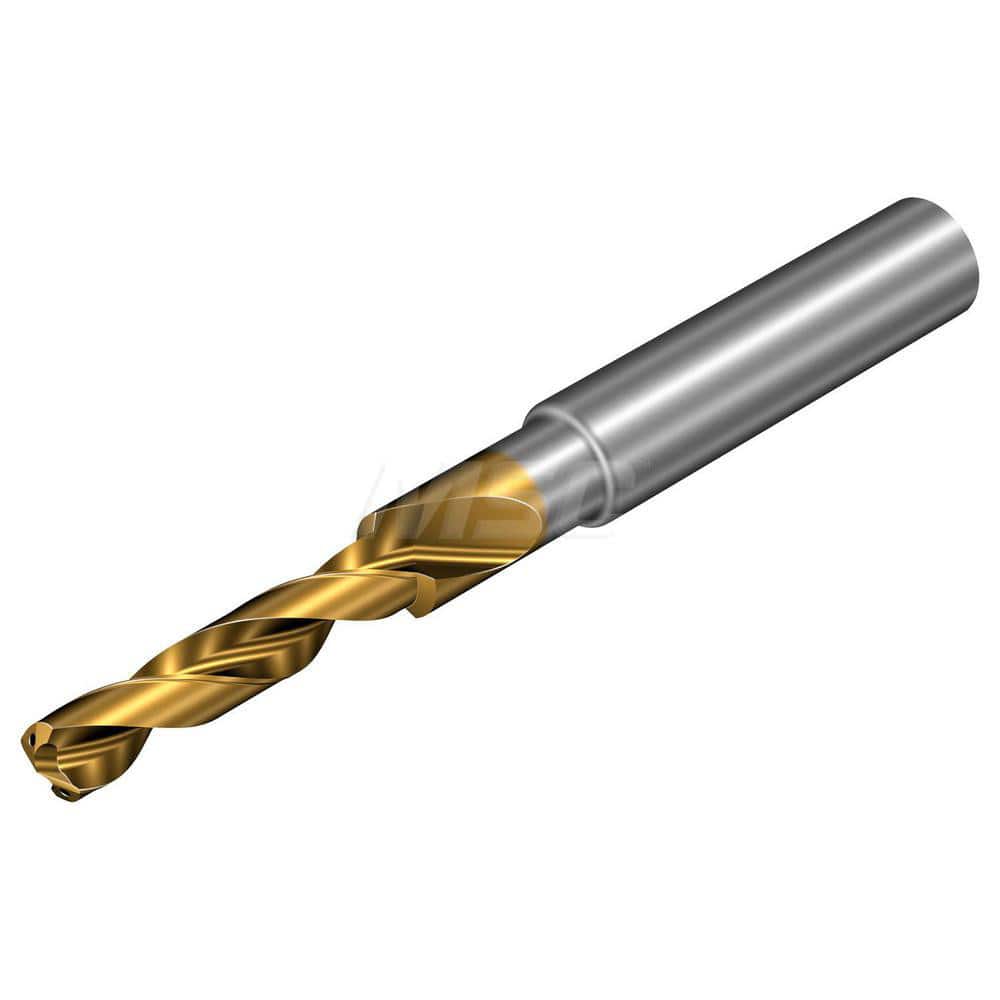

12.5mm Minor 16.9mm Major 38mm Step Length 147° High Performance Solid Carbide Subland Step Drill Bit TiAlSiN & TiSiN Finish, 124mm OAL, Series CoroDrill 860
Item #: 20749909
Brand: Sandvik Coromant
Model #: 8151530
Product Specifications
| Tool Application | Pre-Tap & Chamfer |
| Cut Tap Thread Size (mm) | M14 x 1.50 |
| Tool Material | Solid Carbide |
| Step Length (Decimal Inch) | 1.4961 |
| Step Length (mm) | 38.00 |
| Minor Diameter (Decimal Inch) | 0.4921 |
| Minor Diameter (mm) | 12.50 |
| Through Coolant | Yes |
| Coating/Finish | TiSiN; TiAlSiN |
| Shank Type | Straight-Cylindrical |
| Shoulder Included Angle | 90 |
| Series | CoroDrill 860 |
| Major Diameter (Decimal Inch) | 0.6654 |
| Major Diameter (mm) | 16.90 |
| Shank Diameter (Decimal Inch) | 0.7087 |
| Shank Diameter (mm) | 18.00 |
| Drill Point Angle | 147 |
| Tool Performance | High Performance |
| Number Of Flutes | 2 |
| Manufacturers Grade | P1BM |
