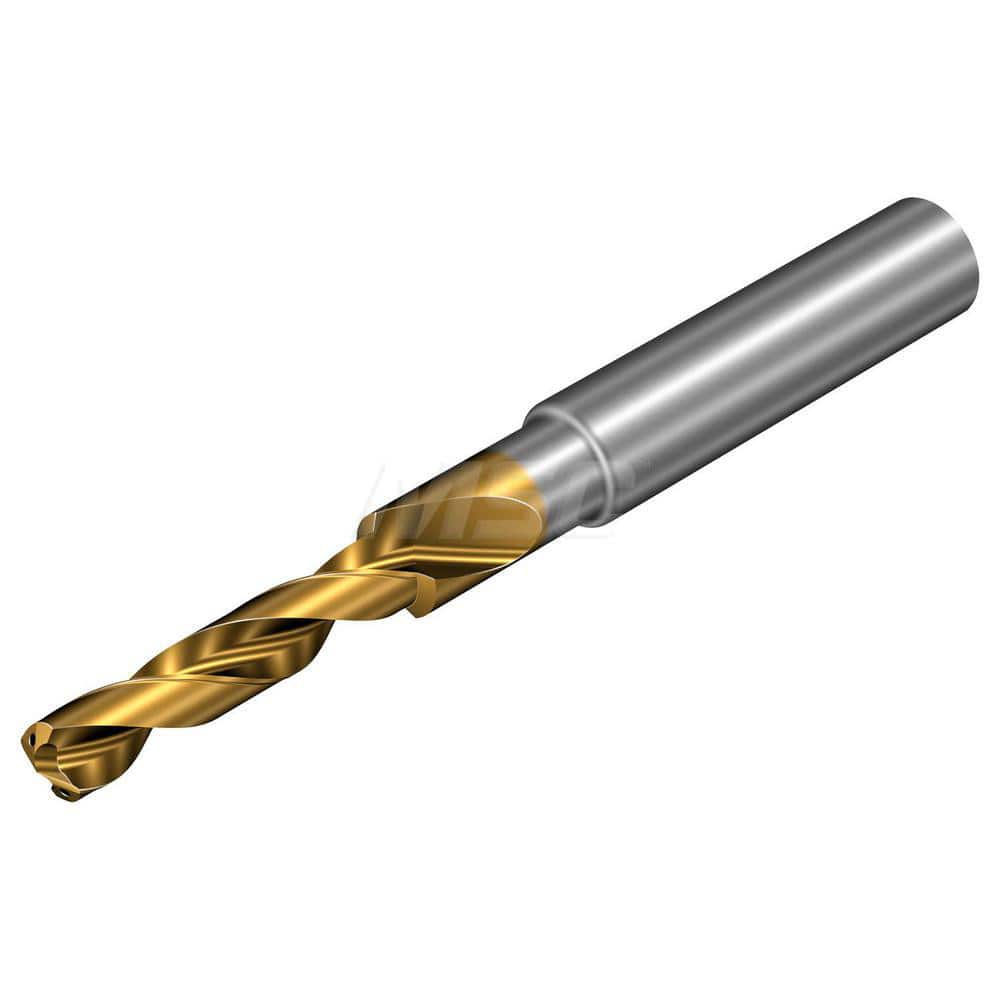

11.2mm Minor 15.1mm Major 34mm Step Length 147° High Performance Solid Carbide Subland Step Drill Bit TiAlSiN & TiSiN Finish, 124mm OAL, Series CoroDrill 860
Item #: 20749875
Brand: Sandvik Coromant
Model #: 8151525
Product Specifications
| Tool Application | Pre-Tap & Chamfer |
| Form Tap Thread Size (mm) | M12 x 1.75 |
| Tool Material | Solid Carbide |
| Step Length (Decimal Inch) | 1.3386 |
| Step Length (mm) | 34.00 |
| Minor Diameter (Decimal Inch) | 0.4409 |
| Minor Diameter (mm) | 11.20 |
| Through Coolant | Yes |
| Coating/Finish | TiSiN; TiAlSiN |
| Shank Type | Straight-Cylindrical |
| Shoulder Included Angle | 90 |
| Series | CoroDrill 860 |
| Major Diameter (Decimal Inch) | 0.5945 |
| Major Diameter (mm) | 15.10 |
| Shank Diameter (Decimal Inch) | 0.6299 |
| Shank Diameter (mm) | 16.00 |
| Drill Point Angle | 147 |
| Tool Performance | High Performance |
| Number Of Flutes | 2 |
| Manufacturers Grade | P1BM |
