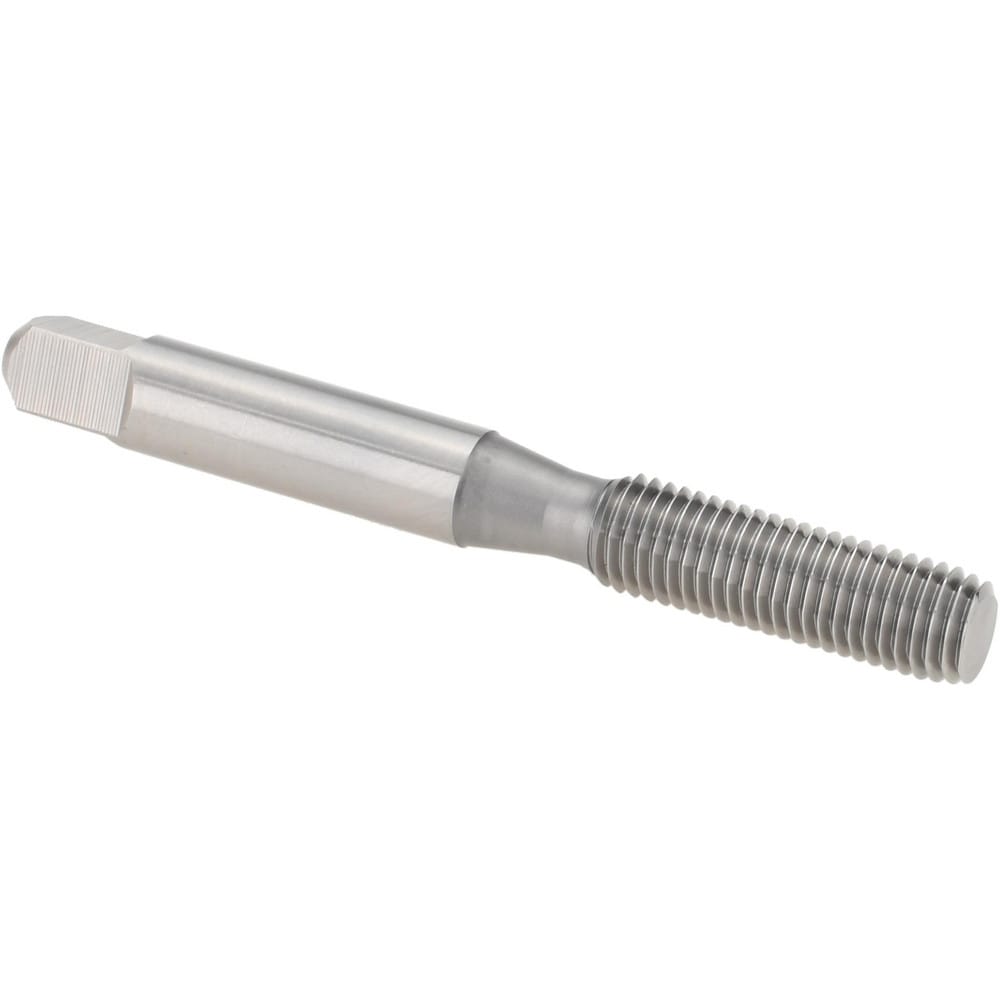

Thread Forming Tap: 5/16-24 UNF, Bottoming, Vanadium High Speed Steel, Bright Finish
Item #: 76228253
Brand: YG-1
Model #: Z2465
Product Specifications
| Thread Size (Inch) | 5/16-24 |
| Thread Standard | UNF |
| Chamfer | Bottoming |
| Chamfered Threads | 1.5-2P |
| Material | High-Speed Steel-E-V3 |
| Coating/Finish | Bright/Uncoated |
| Coolant Through | No |
| Thread Limit | H5 |
| Overall Length (Decimal Inch) | 2.7200 |
| Thread Direction | Right Hand |
| Thread Length (Decimal Inch) | 0.9300 |
| Shank Diameter (Decimal Inch) | 0.3180 |
| Application | Blind Hole Threading |
| Series | Z2 |
| Tapping Depth (Decimal Inch) | 1.1300 |
| Square Size (Decimal Inch) | 0.2380 |
| Flute By Diameter Ratio | 3xD |
| Oil Grooves | 4 |
| UNSPSC Code | 23241600 |
| Country of Origin | South Korea |
