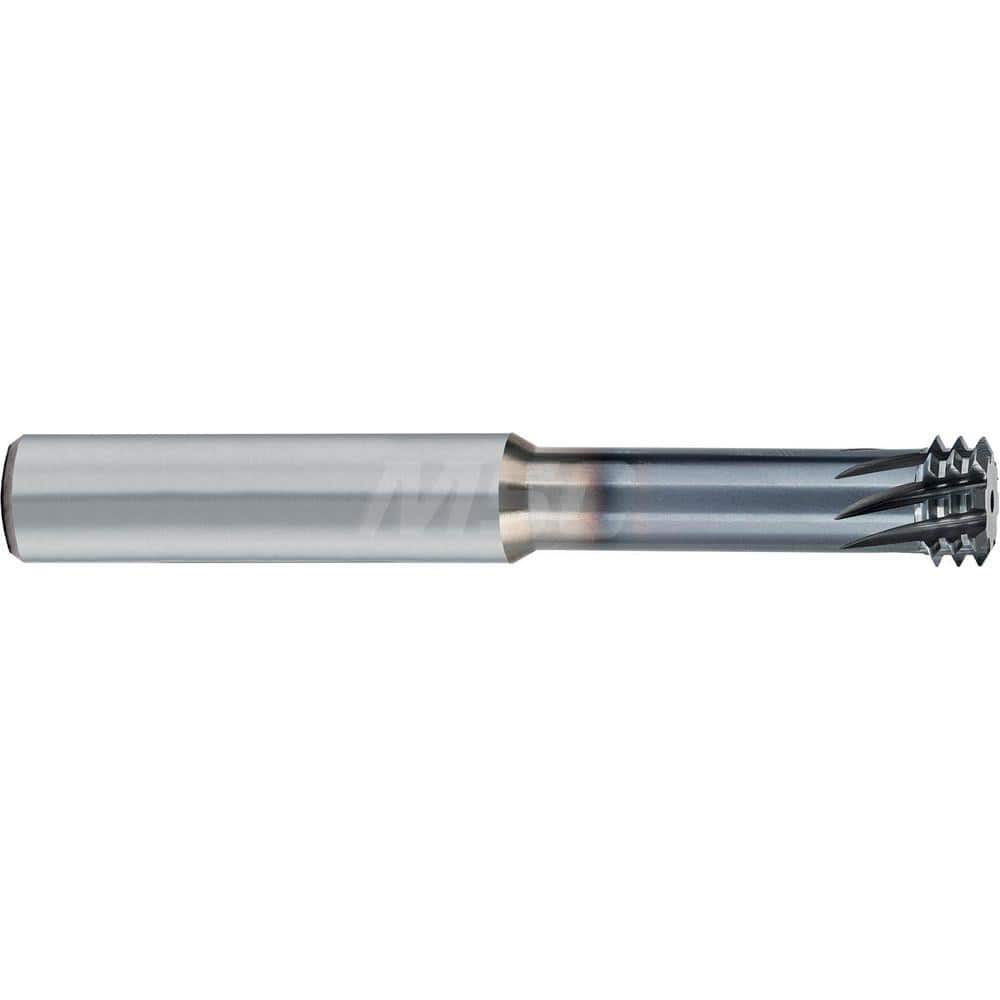

Helical Flute Thread Mill: Internal, 8 Flute, Solid Carbide 0.5906″ Cut Dia, TiCN Coated
Item #: 20531877
Brand: Guhring
Model #: 9040010200000
Product Specifications
| Pitch (mm) | 2.50 |
| Material | Solid Carbide |
| Thread Size (mm) | M20 x 2.50 |
| Thread Type | Internal |
| Shank Diameter (mm) | 16.00 |
| Cutting Diameter (mm) | 15.00 |
| Cutting Diameter (Decimal Inch) | 0.5906 |
| Length of Cut (mm) | 7.50 |
| Minimum Nominal Diameter (mm) | 17.50 |
| Overall Length (mm) | 105.00 |
| Thread Standard | Metric |
| Number Of Flutes | 8 |
| Coating/Finish | TiCN |
| Coolant Through | Yes |
