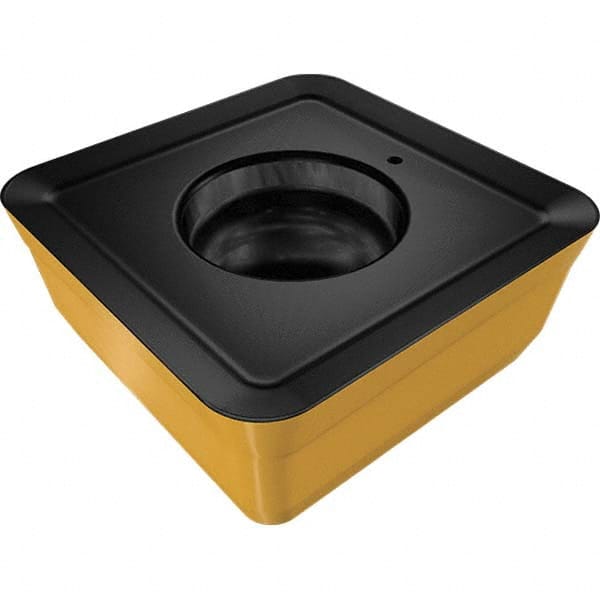

FFQ4SOMT090412HP IC830 Carbide Milling Insert TiAlN/AlTiN/TiN Finish, 8.6mm Long x 3.8mm Thick
Item #: 20089835
Brand: Iscar
Model #: 3323469
Product Specifications
| Insert Style | SOMT |
| Insert Size Code | 090412 |
| Insert Size | 090412 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | IC830 |
| Thickness Range (Decimal Inch) | 0.1250 to 0.1500 |
| Corner Radius (Decimal Inch) | 0.0472 |
| Corner Radius (mm) | 1.20 |
| Length Range (Decimal Inch) | 0.3200 to 0.4000 |
| Series | MILL4FEED |
| Coating Process | PVD |
| Maximum Depth of Cut (Decimal Inch) | 0.0551 |
| Maximum Depth of Cut (mm) | 1.40 |
| Number Of Cutting Edges | 4 |
| Insert Shape | Square |
| Rake | Positive |
| Primary Workpiece Material | Superalloy |
| Primary Workpiece Material Code | P; S; M |
| Secondary Workpiece Material Code | S |
| Iso Code | FFQ4 SOMT 090412HP |
| Standards | ISO 13399 |
| Cutter Series Compatibility | FFQ4 |
| Chip Breaker | HP |
| Thickness (mm) | 3.80 |
| Coating/Finish | Coated |
| Length | 8.60 |
| Width (Decimal Inch - 4 Decimals) | 0.3350 |
| Width (Mm - 2 Decimals) | 8.50 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1496 |
| Length (Decimal Inch - 4 Decimals) | 0.3380 |
