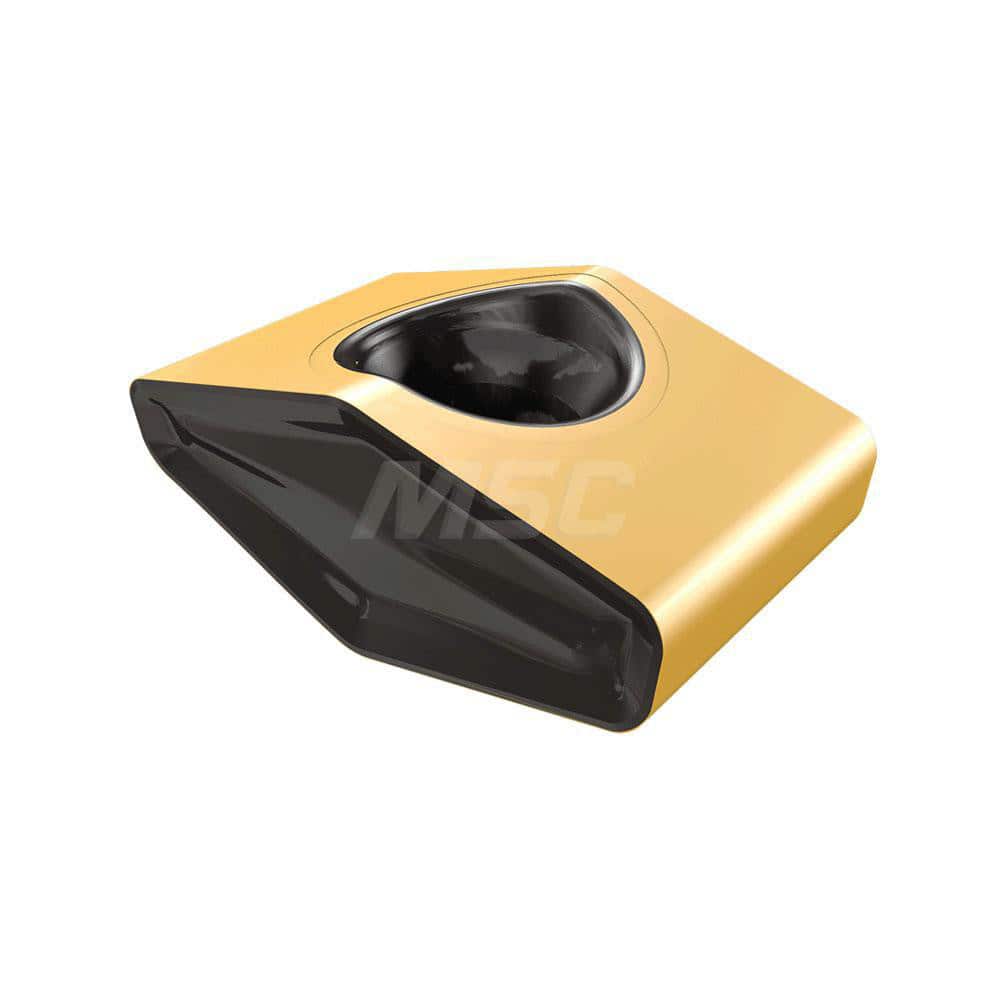

FFVNMT0706ZN-ETR IC808 Carbide Milling Insert TiAlN/AlTiN/TiN Finish, 15mm Long x 9.05mm Thick x 6.4mm Wide
Item #: 20089520
Brand: Iscar
Model #: 3342807
Product Specifications
| Insert Style | VNMT |
| Insert Size Code | 0706 |
| Insert Size | 0706 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | IC808 |
| Thickness Range (Decimal Inch) | 0.3500 to 0.5000 |
| Corner Radius (Decimal Inch) | 0.0393 |
| Corner Radius (mm) | 1.00 |
| Length Range (Decimal Inch) | 0.5000 to 0.6000 |
| Series | TANG4FEED |
| Coating Process | PVD |
| Maximum Depth of Cut (Decimal Inch) | 0.0590 |
| Maximum Depth of Cut (mm) | 1.50 |
| Number Of Cutting Edges | 4 |
| Primary Workpiece Material Code | P; S; H; K; M |
| Secondary Workpiece Material Code | S; H |
| Iso Code | FF VNMT 0706ZN-ETR |
| Standards | ISO 13399 |
| Cutter Series Compatibility | VNMT |
| Chip Breaker | NETR |
| Thickness (mm) | 9.05 |
| Coating/Finish | Coated |
| Length | 15.00 |
| Width (Decimal Inch - 4 Decimals) | 0.2519 |
| Width (Mm - 2 Decimals) | 6.40 |
| Thickness (Decimal Inch - 4 Decimals) | 0.3562 |
| Length (Decimal Inch - 4 Decimals) | 0.5905 |
