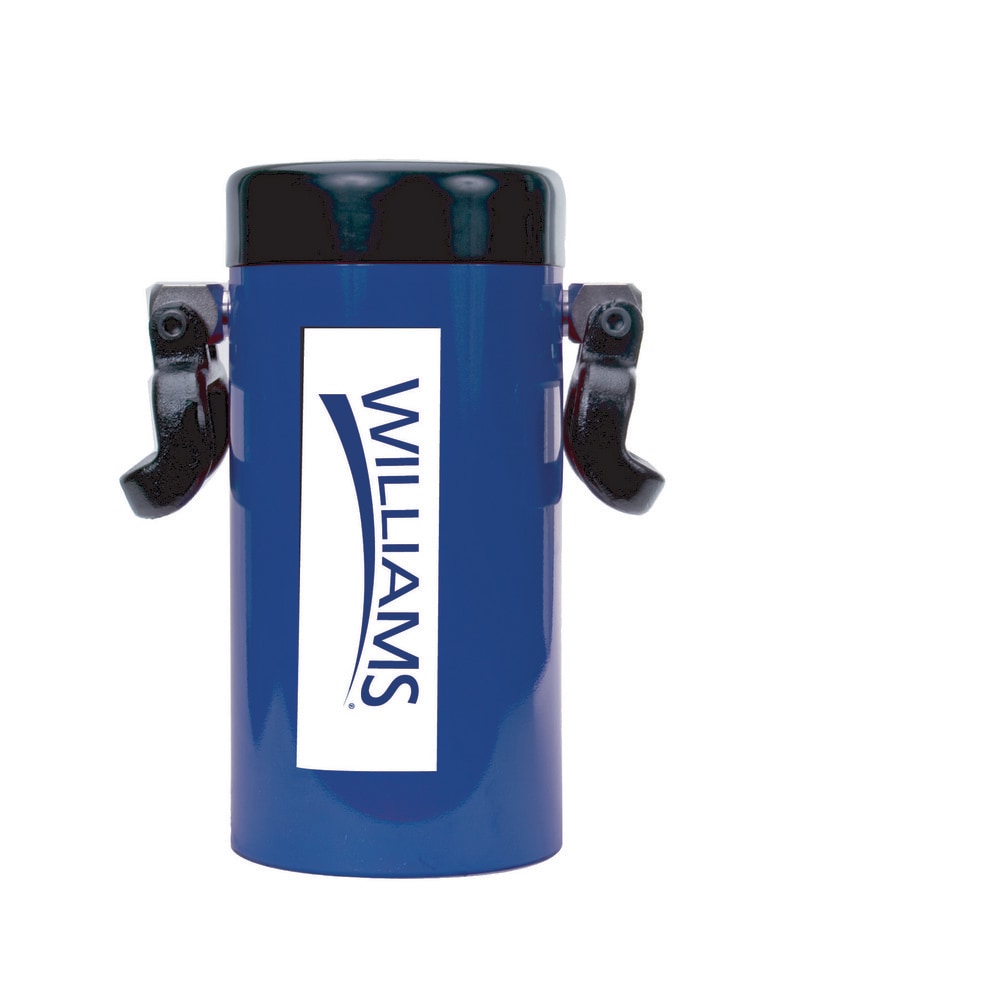

Portable Hydraulic Cylinders; Actuation: Single Acting; Load Capacity: 100 TON; Stroke Length: 6.61; Piston Stroke (Decimal Inch): 6.6100; Oil Capacity: 135.97; Cylinder Effective Area: 20.57; Lowered Height: 14.06
Item #: 54381223
Brand: Williams
Model #: 6C100T06
Product Specifications
| Actuation | Single Acting |
| Load Capacity | 100 TON |
| Stroke Length | 6.61 |
| Piston Stroke (Decimal Inch) | 6.6100 |
| Oil Capacity | 135.97 |
| Cylinder Effective Area | 20.57 |
| Lowered Height | 14.06 |
| Retracted Length | 14.06 |
| Extended Length | 20.67 mm |
| Cushion Type | No Cushion |
| Outside Diameter | 6.97 |
| Rod Diameter | 5.12 mm |
| Plunger Type | Solid |
| Telescopic | Yes |
| Maximum Working Pressure | 10000 psi |
| Body Material | Steel |
| Rod Thread Size | .76 |
| Saddle Diameter | .94 |
| Y Center Hole Diameter | 5.12 |
| Maximum Height (Inch) | 20.67 |
| For Use With | Lifting |
| UNSPSC Code | 27121602 |
| Actuation | Single Acting |
| Load Capacity | 100 TON |
| Stroke Length | 6.61 |
| Piston Stroke (Decimal Inch) | 6.6100 |
| Oil Capacity | 135.97 |
| Cylinder Effective Area | 20.57 |
| Lowered Height | 14.06 |
| Retracted Length | 14.06 |
| Extended Length | 20.67 mm |
| Cushion Type | No Cushion |
| Outside Diameter | 6.97 |
| Rod Diameter | 5.12 mm |
| Plunger Type | Solid |
| Telescopic | Yes |
| Maximum Working Pressure | 10000 psi |
| Body Material | Steel |
| Rod Thread Size | .76 |
| Saddle Diameter | .94 |
| Y Center Hole Diameter | 5.12 |
| Maximum Height (Inch) | 20.67 |
| For Use With | Lifting |
| UNSPSC Code | 27121602 |
| MSC Part # | 54381223 |
| Mfr Part # | 6C100T06 |
| Country of Origin Country of Origin is subject to change | Taiwan |
