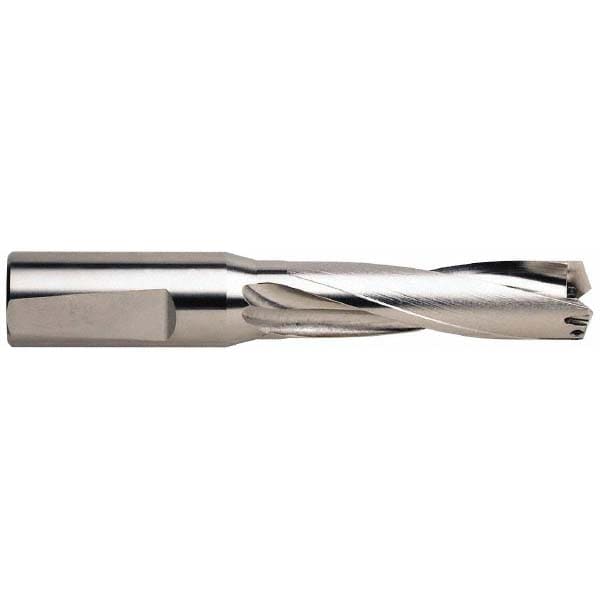

Replaceable-Tip Drill: 20.24 to 21.03 mm Dia, 66 mm Max Depth, 1" Whistle Notch Shank
Item #: 72305519
Brand: Guhring
Model #: 9052420210050
Product Specifications
| Minimum Drill Diameter (Decimal Inch) | 0.7969 |
| Minimum Drill Diameter (mm) | 20.24 |
| Maximum Drill Diameter (mm) | 21.03 |
| Maximum Drill Diameter (Decimal Inch) | 0.8280 |
| Drill Depth by Diameter Ratio | 3xD |
| Maximum Drill Depth (mm) | 66.00 |
| Maximum Drill Depth (Decimal Inch) | 2.5984 |
| Shank Type | Whistle Notch |
| Shank Diameter (Inch) | 1 |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Insert Seat Size | 2.1 |
| Maximum Drill Depth Range (Decimal Inch) | 2.5000 to 3.5000 |
| Maximum Drill Depth Range (mm) | 60.00 to 80.00 |
| Compatible Insert Style | RT 800 WP |
| Overall Length (mm) | 153 |
| Series | 5242 |
| Flute Length (mm) | 93.00 |
| Shank Length (mm) | 56.00 |
| Coolant Through | Yes |
| UNSPSC Code | 23291502 |
| Minimum Drill Diameter (Decimal Inch) | 0.7969 |
| Minimum Drill Diameter (mm) | 20.24 |
| Maximum Drill Diameter (mm) | 21.03 |
| Maximum Drill Diameter (Decimal Inch) | 0.8280 |
| Drill Depth by Diameter Ratio | 3xD |
| Maximum Drill Depth (mm) | 66.00 |
| Maximum Drill Depth (Decimal Inch) | 2.5984 |
| Shank Type | Whistle Notch |
| Shank Diameter (Inch) | 1 |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Insert Seat Size | 2.1 |
| Maximum Drill Depth Range (Decimal Inch) | 2.5000 to 3.5000 |
| Maximum Drill Depth Range (mm) | 60.00 to 80.00 |
| Compatible Insert Style | RT 800 WP |
| Overall Length (mm) | 153 |
| Series | 5242 |
| Flute Length (mm) | 93.00 |
| Shank Length (mm) | 56.00 |
| Coolant Through | Yes |
| UNSPSC Code | 23291502 |
| MSC Part # | 72305519 |
| Mfr Part # | 9052420210050 |
| Country of Origin Country of Origin is subject to change | Germany |
