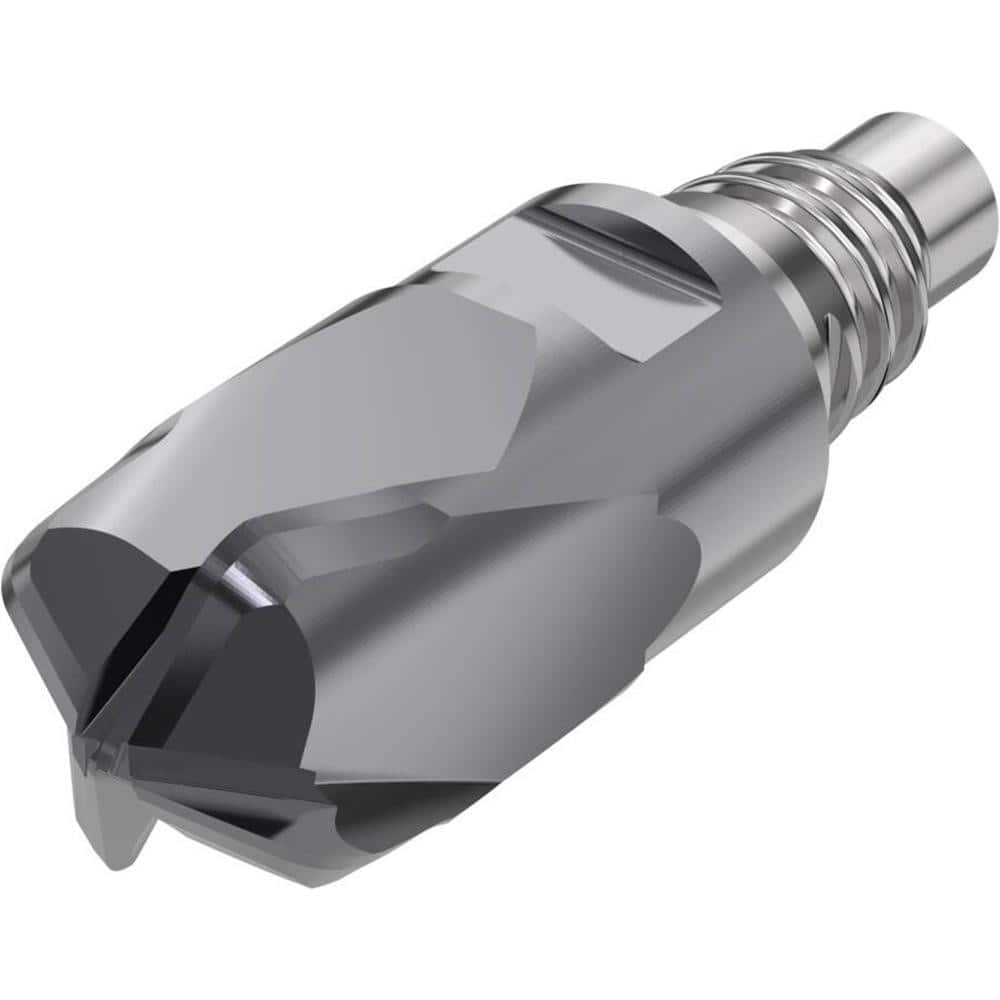

Milling Tip Inserts; Milling Tip Type: Profile Mill; Milling Tip Style: XHT; Maximum Depth of Cut (mm): 8.95; Cutting Diameter (mm): 16.00; Tool Material: Carbide; Depth of Cut (mm): 8.95; Manufacturer Grade: SIRA; Chipbreaker: None; Series: XHT740; Coati
Item #: 19886050
Brand: Seco
Model #: 10138390
Product Specifications
| Milling Tip Type | Profile Mill |
| Milling Tip Style | XHT |
| Maximum Depth of Cut (mm) | 8.95 |
| Cutting Diameter (mm) | 16.00 |
| Tool Material | Carbide |
| Depth of Cut (mm) | 8.95 |
| Manufacturer Grade | SIRA |
| Chipbreaker | None |
| Series | XHT740 |
| Coating Process | PVD |
| Corner Radius (mm) | 4.00 |
| Cutting Width (mm) | 0.000 |
| Primary Workpiece Material | Hard Material; Stainless Steel; Super-alloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; H; M |
| Lead Angle | 90 |
| Manufacturers Catalog Number | XHT740E16160T2R4R500Z4 |
| Insert Size | E10 |
| Length of Cut (mm) | 8.9500 |
| Helix Angle | 20 |
| Coolant Through | No |
| Mill Diameter (mm) | 16.00 |
| Overall Length (mm) | 46.2000 |
| Projection Length (Decimal Inch) | 1.1496 |
| Included Angle Degree | 90 |
| Coating/Finish | SIRA |
| Number Of Flutes | 4 |
| Length | 29.20 |
