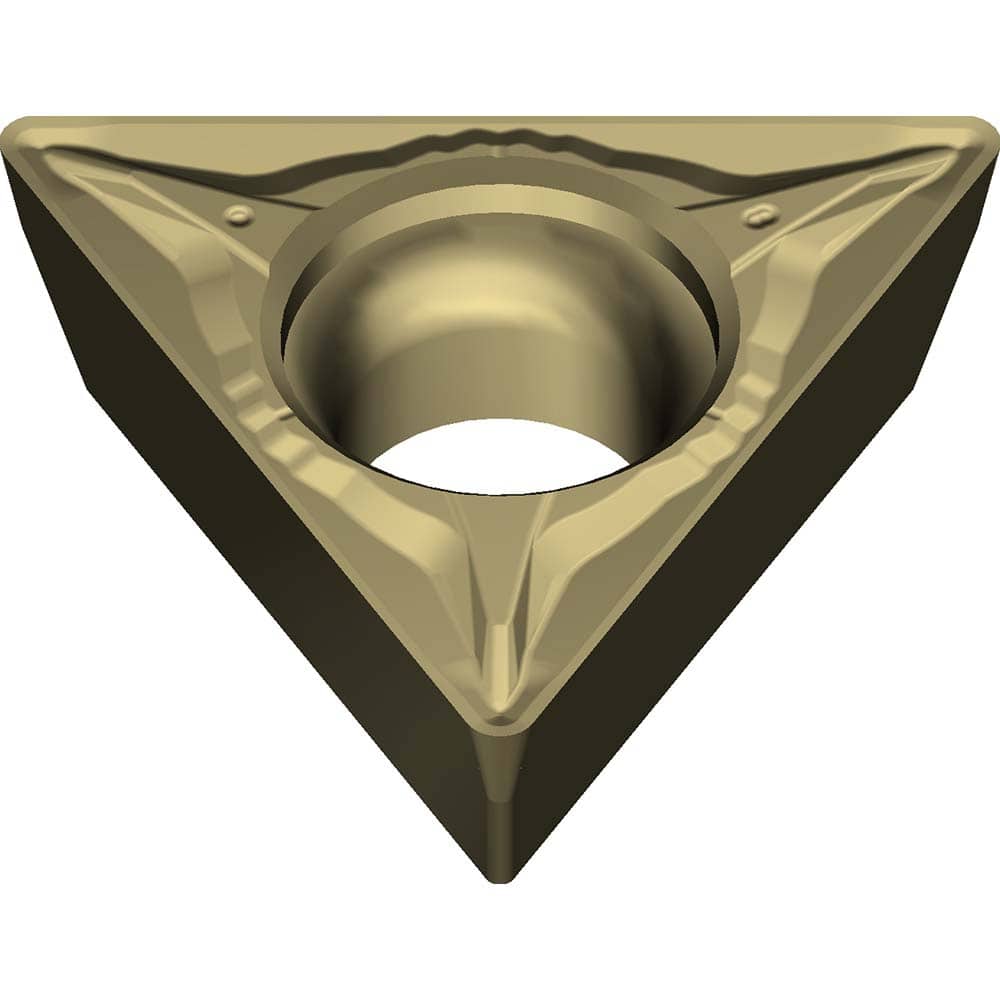

TPMT222EGU AC8020P Carbide Turning Insert Absotech Finish, 0.4331″ Long, 1/4″ Inscribed Circle, 0.0315″ Corner Radius, 0.1252″ Thick, Series AC8020P
Item #: 19645126
Brand: Sumitomo
Model #: 19W1DDH
Product Specifications
| Insert Style | TPMT |
| Insert Shape Code | T |
| Insert Size Code | 222 |
| Clearance Code | P |
| Tolerance Code | M |
| Insert Material | Solid Carbide |
| Manufacturer Grade | AC8020P |
| Inscribed Circle (Inch) | 1/4 |
| Insert Holding Method | Screw-On |
| Insert Thickness (Decimal Inch) | 0.1252 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Included Angle | 60.0 |
| Relief Angle | 11 |
| Series | AC8020P |
| Coating Process | CVD |
| Length Range (Decimal Inch) | 0.4000 - 0.5000 |
| Rake | Positive |
| Insert Length (Decimal Inch) | 0.4331 |
| Primary Workpiece Material | Steel |
| Secondary Workpiece Material | Steel |
| Iso Code | TPMT110308N-GU |
| Manufacturers Catalog Number | TPMT222EGU-AC8020P |
| Material Grade | P20 |
| Chip Breaker | EGU |
| Coating/Finish | Absotech |
