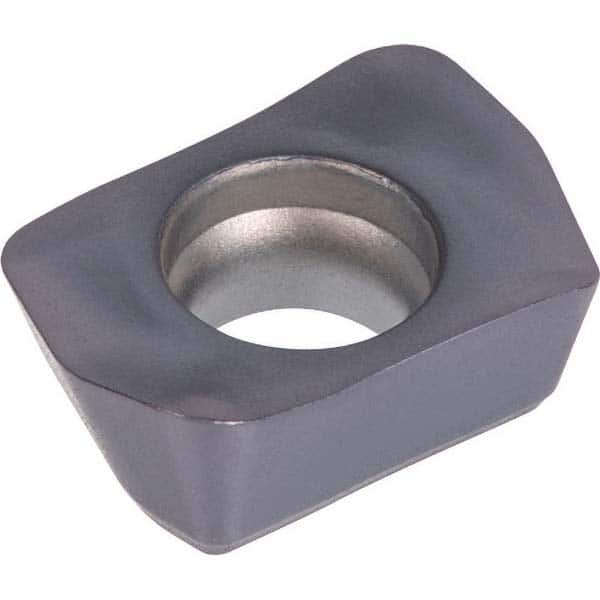

LSMT0202ZER-HM AH3225 Carbide Milling Insert TiN/AlN Finish, 6.4mm Long x 2.3mm Thick x 0.1654″ Wide
Item #: 19379403
Brand: Tungaloy
Model #: 6778688
Product Specifications
| Insert Style | LSMT |
| Insert Size Code | 202 |
| Insert Size | 0202 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | AH3225 |
| Inscribed Circle (Decimal Inch) | 0.1654 |
| Inscribed Circle (mm) | 4.20 |
| Thickness Range (Decimal Inch) | 0.0000 to 0.1000 |
| Corner Radius (Decimal Inch) | 0.0394 |
| Corner Radius (mm) | 1.00 |
| Inscribed Circle Range (Decimal Inch) | 0.0000 to 0.2500 |
| Length Range (Decimal Inch) | 0.0000 to 0.3200 |
| Insert Hand | Right Hand |
| Series | LSMT |
| Coating Process | PVD |
| Maximum Depth of Cut (Decimal Inch) | 0.0197 |
| Maximum Depth of Cut (mm) | 0.50 |
| Insert Shape | Rectangle |
| Primary Workpiece Material | Universal |
| Primary Workpiece Material Code | P; S; K; M |
| Iso Code | LSMT0202ZER-HM |
| Standards | ISO; ANSI |
| Chip Breaker | HM |
| Shape | Rectangle |
| Thickness (mm) | 2.30 |
| Coating/Finish | Coated |
| Included Angle Degree | 90 |
| Length | 6.40 |
| Width (Mm - 2 Decimals) | 4.20 |
| Thickness (Decimal Inch - 4 Decimals) | 0.0906 |
| Length (Decimal Inch - 4 Decimals) | 0.2520 |
