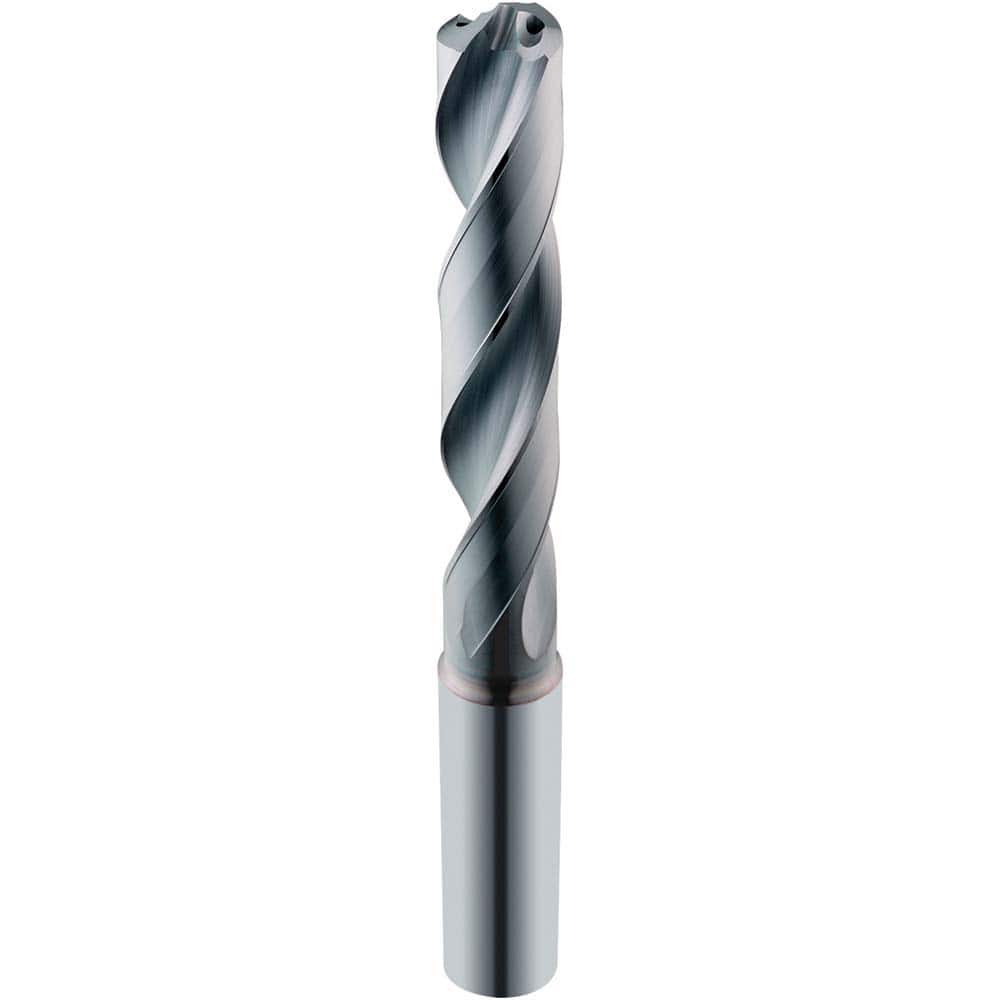

Jobber Length Drill Bit: 0.6562″ Dia, 135 °, Solid Carbide TX Finish, 5.6299″ OAL, Right Hand Cut, Spiral Flute, Straight-Cylindrical Shank, Series 142P
Item #: 19244706
Brand: SGS
Model #: 56469
Product Specifications
| Drill Bit Size (Decimal Inch) | 0.6562 |
| Drill Bit Size (Inch) | 21/32 |
| Drill Bit Size (mm) | 15.50 |
| Drill Bit Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Drill Bit Finish/Coating | TX |
| Drill Point Angle (Degrees) | 135 |
| Flute Type | Spiral |
| Point Type | Standard |
| Coolant Through | Yes |
| Shank Type | Straight-Cylindrical |
| Number of Flutes | 2 |
| Shank Diameter (Decimal Inch) | 0.6200 |
| Overall Length (mm) | 143.00 |
| Overall Length (Decimal Inch) | 5.6299 |
| Flute Length (mm) | 93.00 |
| Flute Length (Decimal Inch) | 3.6614 |
| Series | 142P |
| Flute Length x Diamter Ratio | 5xD |
| Flute By Diameter Ratio | 5xD |
| Shank Diameter (mm) | 18.00 |
| Maximum Drilling Depth (Decimal Inch) | 0.9055 |
| Maximum Drilling Depth (mm) | 23.00 |
| Shank Length (mm) | 48.00 |
| Shank Length (Decimal Inch) | 1.8898 |
| Number of Flats | 0 |
| Drill Point Length (mm) | 3.45 |
| Drill Point Length (Decimal Inch) | 0.1359 |
| Drill Bit Diameter Tolerance | +0.007 to +0.025 mm; +.00028 to +.00098 in |
| Web Thinning | Web-Thinned |
| Specification Number | DIN 6537 |
| Drill Bit Grade | High Performance |
| Drill Bit Size Range (Decimal Inch) | 0.6500+ |
| Material Grade | Micrograin |
| Specification Designation | DIN |
| Product Service Code | 3455 |
 | |
| MSC Part # | 19244706 |
| Mfr Part # | 56469 |
| Country of OriginCountry of Origin is subject to change | UNITED STATES |
