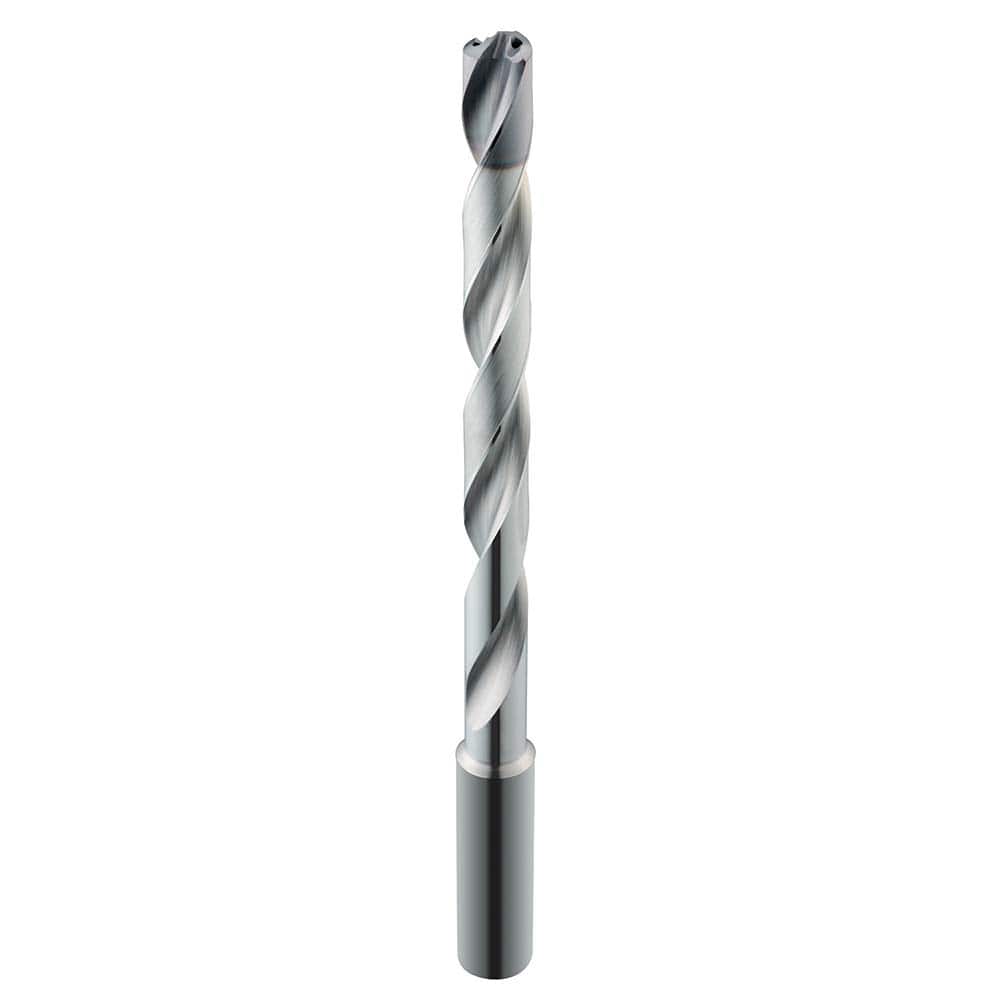

Taper Length Drill Bit: 0.3701″ Dia, 135 ° TX Finish, 3.7402″ Flute Length, 5.5905″ OAL, RH Cut, Spiral Flute, Cylindrical Shank, Series 142P
Item #: 19242999
Brand: SGS
Model #: 66670
Product Specifications
| Drill Bit Size (Inch) | 7/32 |
| Drill Bit Size (mm) | 9.40 |
| Tool Material | Solid Carbide |
| Coating/Finish | TX |
| Flute Length (mm) | 95.00 |
| Shank Type | Cylindrical |
| Point Type | Standard |
| Flute Type | Spiral |
| Coolant Through | Yes |
| Drill Point Angle (Degrees) | 135 |
| Overall Length (Inch) | 5.5905 |
| Overall Length (mm) | 141.99 |
| Shank Diameter (mm) | 10.00 |
| Drill Bit Size (Decimal Inch) | 0.3701 |
| Flute Length (Decimal Inch) | 3.7402 |
| Flute Length x Diamter Ratio | 8xD |
| Cutting Direction | Right Hand |
| Series | 142P |
| Flute Length X Diameter Ratio | 8xD |
| Maximum Drilling Depth (Decimal Inch) | 3.7402 |
| Maximum Drilling Depth (mm) | 95.00 |
| Shank Length (Decimal Inch) | 1.5748 |
| Shank Length (mm) | 40.00 |
| Shank Length (Inch) | 1-13/32 |
| Drill Point Length (Decimal Inch) | 0.0767 |
| Drill Point Length (mm) | 1.95 |
| Drill Bit Diameter Tolerance | +0.004/+0.016 mm; +.00016/+.00063 in |
| Web Thinning | Web-Thinned |
| Threaded Shank | No |
| Specification Number | DIN 6537 |
| Drill Bit Grade | High Performance |
| Spiral Type | Regular |
| Specification Designation | DIN |
| Material Application3 | Universal |
| Material Grade | Micrograin |
| PSC Code | 3455 |
 | |
| MSC Part # | 19242999 |
| Mfr Part # | 66670 |
| Country of OriginCountry of Origin is subject to change | UNITED STATES |
