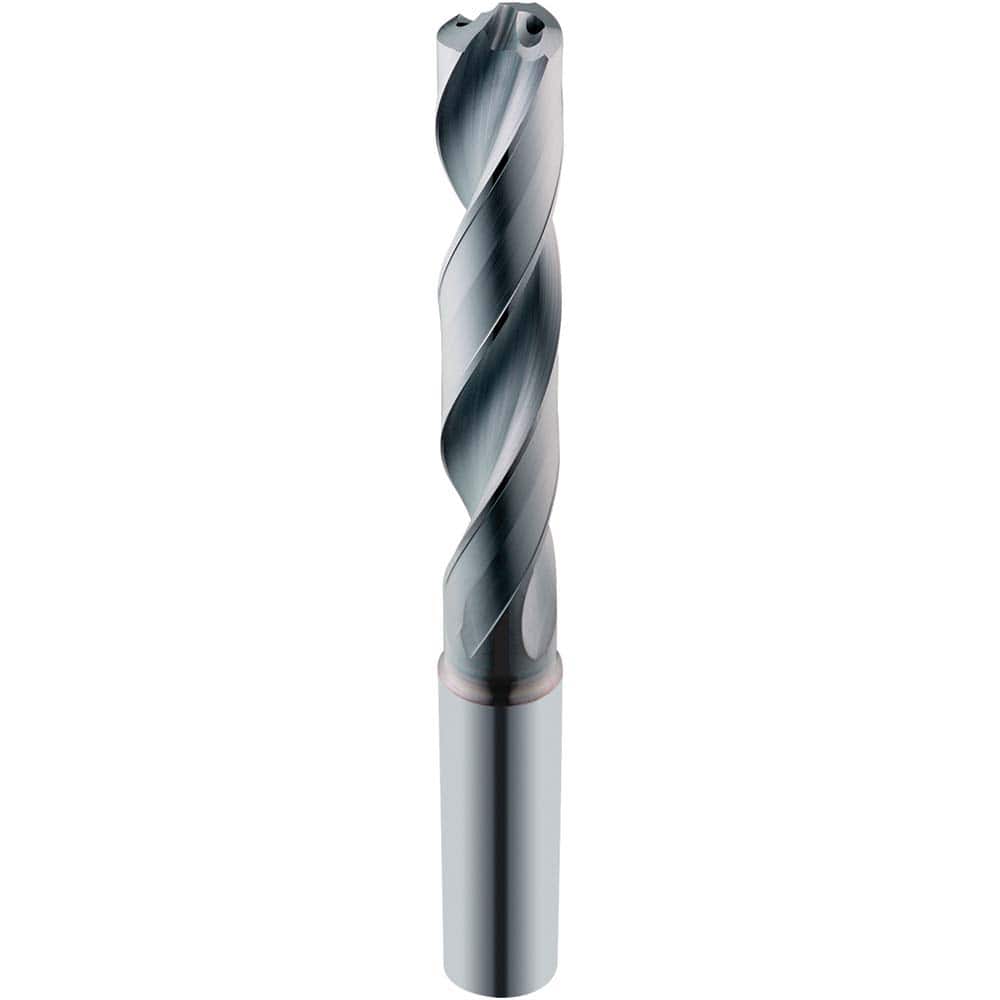

Jobber Length Drill Bit: 0.6299″ Dia, 135 °, Solid Carbide TX Finish, 5.2362″ OAL, Right Hand Cut, Spiral Flute, Straight-Cylindrical Shank, Series 142P
Item #: 19241884
Brand: SGS
Model #: 66605
Product Specifications
| Drill Bit Size (Decimal Inch) | 0.6299 |
| Drill Bit Size (mm) | 16.00 |
| Drill Bit Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Drill Bit Finish/Coating | TX |
| Drill Point Angle (Degrees) | 135 |
| Flute Type | Spiral |
| Point Type | Standard |
| Coolant Through | Yes |
| Shank Type | Straight-Cylindrical |
| Number of Flutes | 2 |
| Shank Diameter (Decimal Inch) | 0.2300 |
| Overall Length (mm) | 133.00 |
| Overall Length (Decimal Inch) | 5.2362 |
| Flute Length (mm) | 83.00 |
| Flute Length (Decimal Inch) | 3.2677 |
| Series | 142P |
| Flute Length x Diamter Ratio | 5xD |
| Flute By Diameter Ratio | 5xD |
| Shank Diameter (mm) | 16.00 |
| Maximum Drilling Depth (Decimal Inch) | 2.4803 |
| Maximum Drilling Depth (mm) | 63.00 |
| Shank Length (mm) | 48.00 |
| Shank Length (Decimal Inch) | 1.8898 |
| Number of Flats | 0 |
| Drill Point Length (mm) | 3.31 |
| Drill Point Length (Decimal Inch) | 0.1305 |
| Drill Bit Diameter Tolerance | +.00016 to +.00063 in; +0.004 to +0.016 mm |
| Web Thinning | Web-Thinned |
| Specification Number | DIN 6537 |
| Drill Bit Grade | High Performance |
| Drill Bit Size Range (Decimal Inch) | 0.5000 - 0.6500 |
| Drill Bit Size Range (mm) | 15.00 |
| Material Grade | Micrograin |
| Specification Designation | DIN |
| Product Service Code | 3455 |
 | |
| MSC Part # | 19241884 |
| Mfr Part # | 66605 |
| Country of OriginCountry of Origin is subject to change | UNITED STATES |
