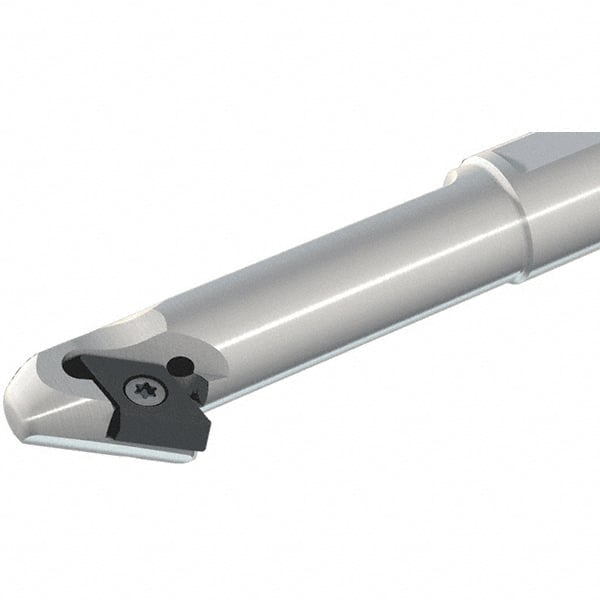

Iscar - Indexable Boring Bars Toolholder Style: E16R SDZNR Series: Isoturn
Item #: 46665782
Brand: Iscar
Model #: 6709255
Product Specifications
Indexable Boring Bars; Toolholder Style: E16R SDZNR ; Series: Isoturn ; Minimum Bore Diameter (mm): 22 ; Minimum Bore Diameter (Decimal Inch): 0.866 ; Hand of Holder: Right Hand ; Maximum Bore Depth (mm): 96
| Toolholder Style | E16R SDZNR |
| Series | Isoturn |
| Minimum Bore Diameter (mm) | 22 |
| Minimum Bore Diameter (Decimal Inch) | 0.866 |
| Hand of Holder | Right Hand |
| Maximum Bore Depth (mm) | 96 |
| Maximum Bore Depth (Decimal Inch) | 3.78 |
| Overall Length (mm) | 200 |
| Overall Length (Decimal Inch) | 7.874 |
| Shank Diameter (mm) | 16 |
| Shank Diameter (Decimal Inch) | 0.629 |
| Insert Compatibility | DNGP |
| Through Coolant | Yes |
| Number of Inserts Used on Toolholder | 1 |
| Insert Holding Method | Screw |
| Number of Inserts Included in Order | 0 |
