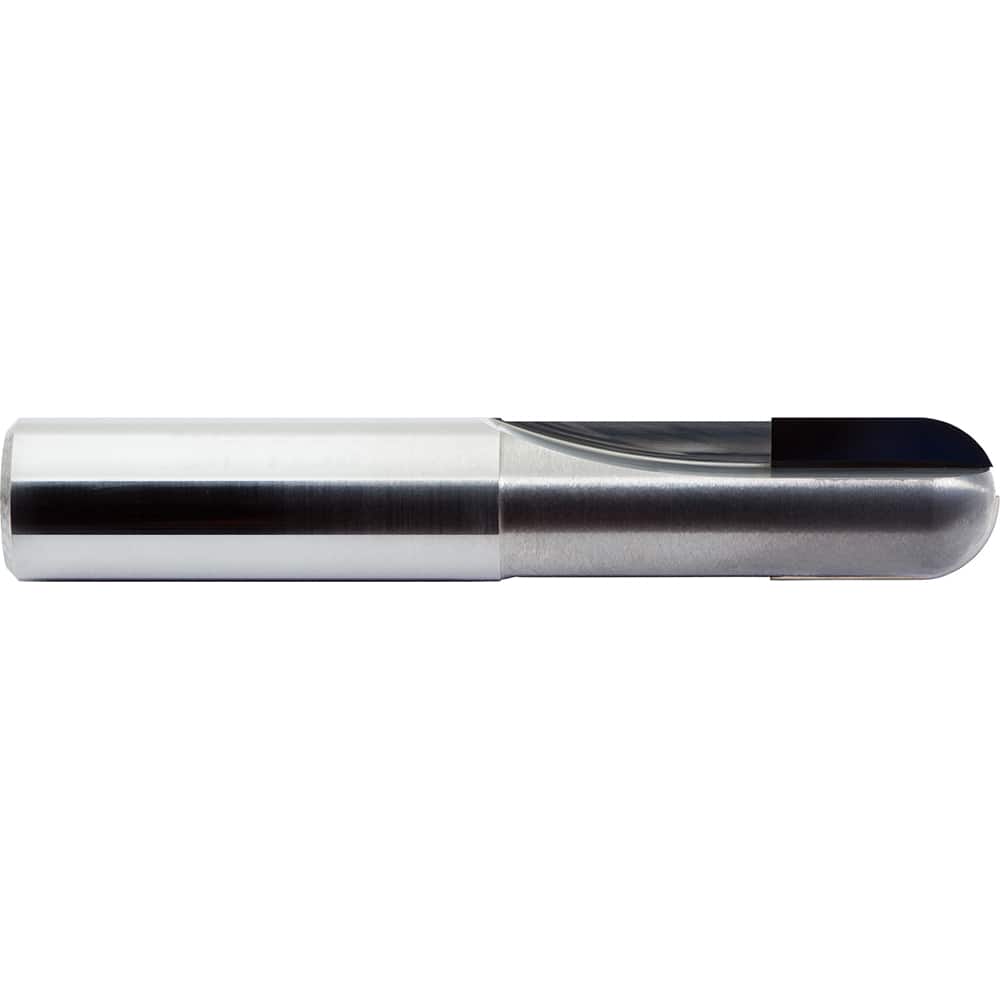

Ball End Mill: 0.625″ Dia, 0.875″ LOC, 2 Flute, Polycrystalline Diamond 3-1/2″ OAL, 5/8″ Shank Dia, 0 ° Helix, Polycrystaline Diamond Coated, Single End, Series DEB
Item #: 18724054
Brand: M.A. Ford?
Model #: DE2B6250
Product Specifications
| Mill Diameter (Inch) | 5/8 |
| Mill Diameter (Decimal Inch) | 0.6250 |
| Length of Cut (Inch) | 7/8 |
| End Mill Material | Polycrystalline Diamond |
| Chipbreaker | No |
| Helix Angle | 0 |
| Variable Index | No |
| Length Of Cut Range (Decimal Inch) | 0.7000 to 1.0000 |
| Variable Helix | No |
| Length Type | Standard |
| Shank Diameter (Inch) | 5/8 |
| Neck Diameter (Decimal Inch) | 0.6050 |
| Nose Radius (Decimal Inch) | 0.3125 |
| Neck Length (Inch) | 1-3/4 |
| Overall Length (Inch) | 3-1/2 |
| Overall Length (Decimal Inch) | 3.5000 |
| Flute Direction | Right Hand |
| Cutting Direction | Right Hand |
| Series | DEB |
| Flute Type | Straight |
| Centercutting | Yes |
| Single Or Double End | Single |
| Number Of Flutes | 2 |
| Coating/Finish | Polycrystaline Diamond |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.8750 |
