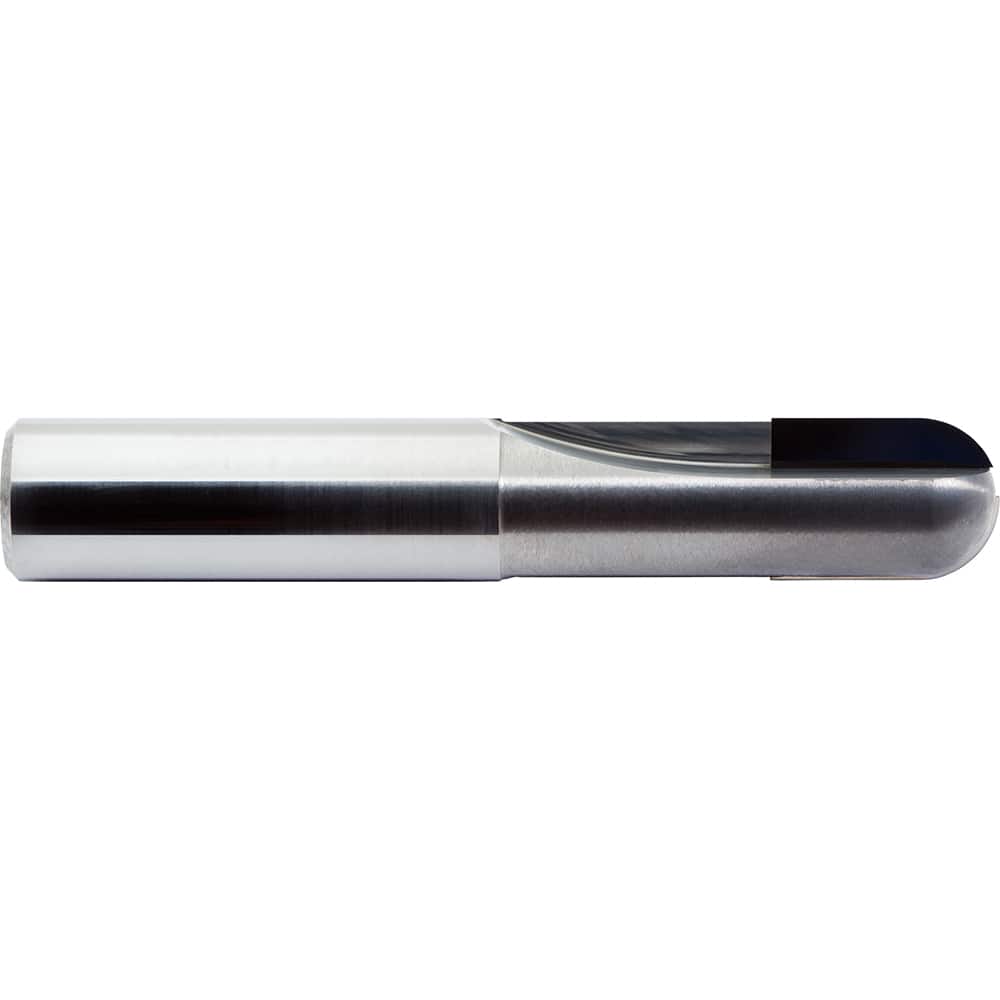

Ball End Mill: 0.7874″ Dia, 1.01″ LOC, 2 Flute, Polycrystalline Diamond 100 mm OAL, 20 mm Shank Dia, 0 ° Helix, Polycrystaline Diamond Coated, Single End, Series DEB
Item #: 18723874
Brand: M.A. Ford?
Model #: DE2BM2000
Product Specifications
| Mill Diameter (Decimal Inch) | 0.7874 |
| Mill Diameter (mm) | 20.00 |
| Length of Cut (mm) | 25.00 |
| End Mill Material | Polycrystalline Diamond |
| Chipbreaker | No |
| Helix Angle | 0 |
| Variable Index | No |
| Length Of Cut Range (Decimal Inch) | 1.0000 to 1.5000 |
| Variable Helix | No |
| Length Type | Standard |
| Shank Diameter (mm) | 20.00 |
| Neck Diameter (Decimal Inch) | 0.7670 |
| Nose Radius (Decimal Inch) | 0.3937 |
| Neck Length (Inch) | 50 |
| Neck Length (Decimal Inch) | 50.0000 |
| Overall Length (Decimal Inch) | 3.9370 |
| Overall Length (mm) | 100.00 |
| Flute Direction | Right Hand |
| Cutting Direction | Right Hand |
| Series | DEB |
| Flute Type | Straight |
| Centercutting | Yes |
| Single Or Double End | Single |
| Number Of Flutes | 2 |
| Coating/Finish | Polycrystaline Diamond |
| Length Of Cut (Decimal Inch - 4 Decimals) | 1.0100 |
