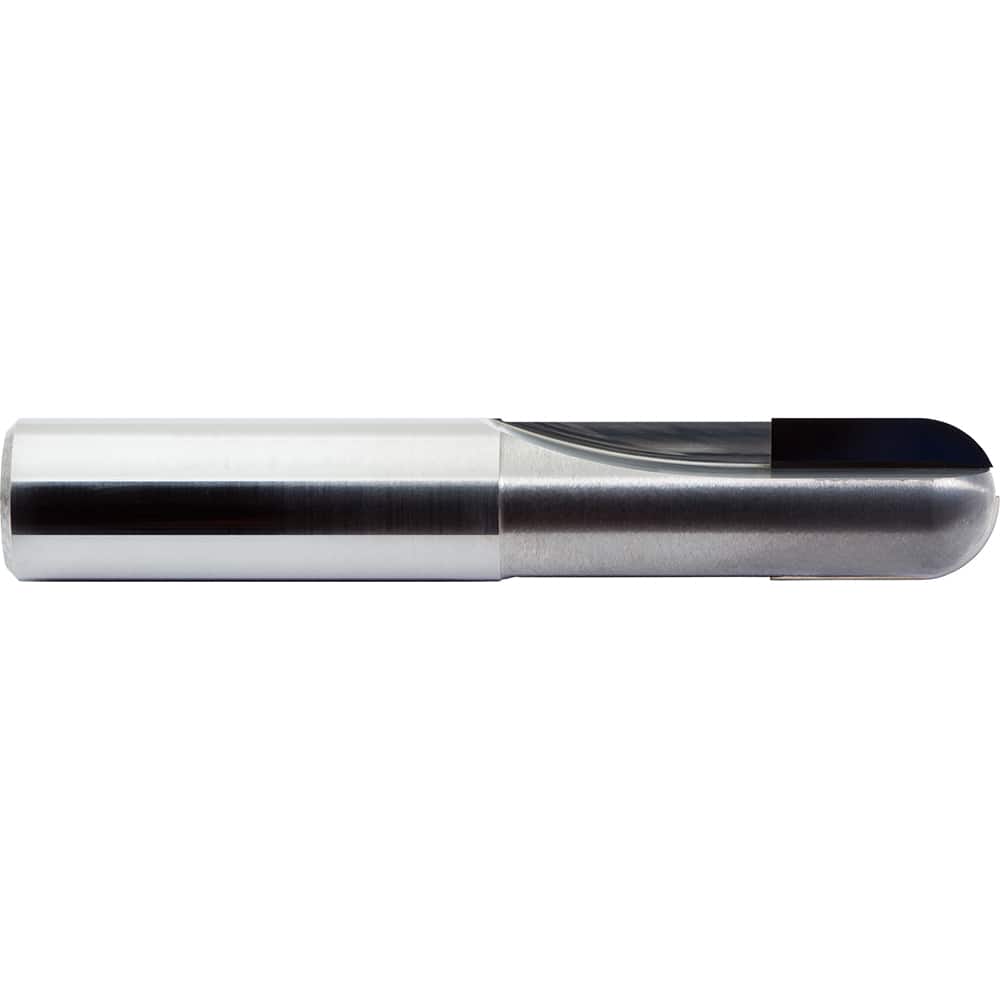

Ball End Mill: 0.75″ Dia, 1″ LOC, 2 Flute, Polycrystalline Diamond 4″ OAL, 3/4″ Shank Dia, 0 ° Helix, Polycrystaline Diamond Coated, Single End, Series DEB
Item #: 18723858
Brand: M.A. Ford?
Model #: DE2B7500
Product Specifications
| Mill Diameter (Inch) | 3/4 |
| Mill Diameter (Decimal Inch) | 0.7500 |
| Length of Cut (Inch) | 1 |
| End Mill Material | Polycrystalline Diamond |
| Chipbreaker | No |
| Helix Angle | 0 |
| Variable Index | No |
| Length Of Cut Range (Decimal Inch) | 1.0000 to 1.5000 |
| Variable Helix | No |
| Length Type | Standard |
| Shank Diameter (Inch) | 3/4 |
| Neck Diameter (Decimal Inch) | 0.7300 |
| Nose Radius (Decimal Inch) | 0.3750 |
| Neck Length (Inch) | 2 |
| Neck Length (Decimal Inch) | 2.0000 |
| Overall Length (Inch) | 4 |
| Overall Length (Decimal Inch) | 4.0000 |
| Flute Direction | Right Hand |
| Cutting Direction | Right Hand |
| Series | DEB |
| Flute Type | Straight |
| Centercutting | Yes |
| Single Or Double End | Single |
| Number Of Flutes | 2 |
| Coating/Finish | Polycrystaline Diamond |
| Length Of Cut (Decimal Inch - 4 Decimals) | 1.0000 |
