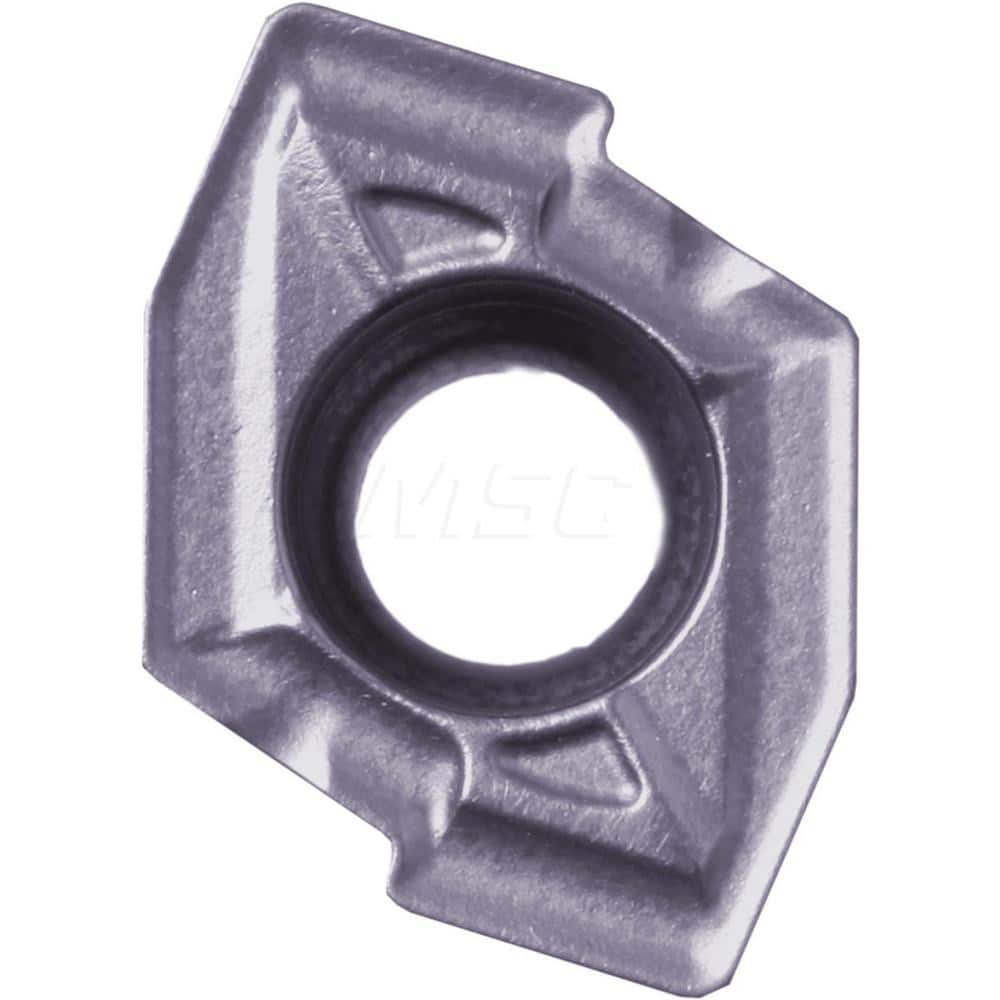

Indexable Drill Insert: WCMXM1 CA6535, Carbide TiCN, Al2O3 & TiN Finish, 80 °
Item #: 18426379
Brand: Kyocera
Model #: 8858936
Product Specifications
| Insert Style | WCMX |
| Insert Material | Solid Carbide |
| Manufacturer Grade | CA6535 |
| Thickness (mm) | 3.97 |
| Inscribed Circle (mm) | 9.53 |
| Cutting Direction | Right Hand |
| Corner Radius (mm) | 0.80 |
| Chipbreaker | M1 |
| Coating Process | CVD |
| Hole Diameter (Mm) ( - 0 Decimals) | 3.71 |
| Relief Angle | 7 |
| Primary Workpiece Material | M |
| Iso Code | WCMX06T308M1 |
| Manufacturers Catalog Number | WCMX06T308M1CA6535 |
| Drill Style | OTMD |
| Insert Size | 06T308 |
| Length (Mm) | 0.08 |
| Included Angle Degree | 80 |
| Coating/Finish | TiCn; TiN; Al2O3 |
