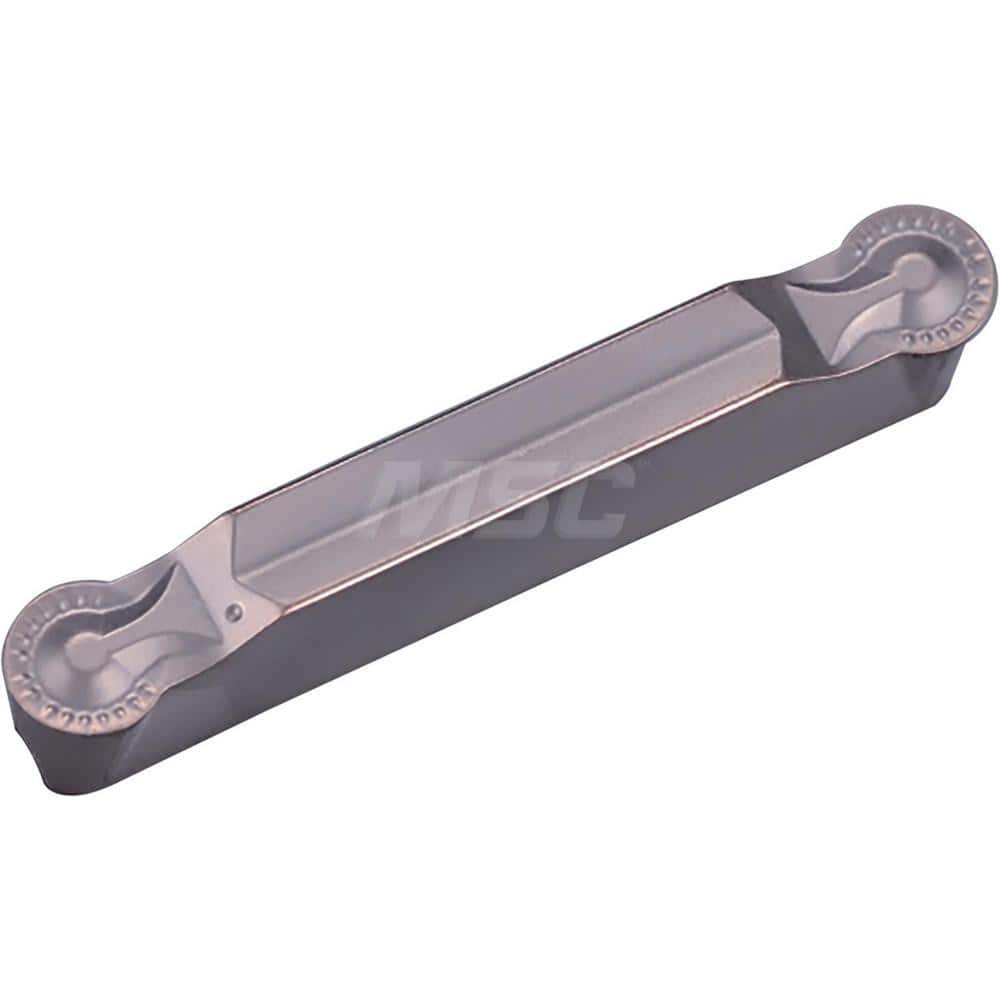

Grooving Insert: GDM3015CM PR1535, Solid Carbide Megacoat Nano Finish, Neutral, 3 mm Cutting Width, 8 mm Max Depth, Series KGD
Item #: 18293399
Brand: Kyocera
Model #: TLC10960
Product Specifications
| Insert Style | GDM |
| Insert Size | 3015 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | PR1535 |
| Cutting Width (mm) | 3.00 |
| Maximum Depth of Cut (mm) | 8.00 |
| Insert Holding Method | Clamp |
| Cutting Height (mm) | 4.60 |
| Insert Hand | Neutral |
| Corner Radius (mm) | 1.50 |
| Maximum Depth Of Cut Range (mm) | 5.00 to 10.00 |
| Lead Angle | 0 |
| Rake | Positive |
| Cutting Tool Application | Internal Grooving |
| Series | KGD |
| Coating Process | PVD |
| Iso Code | GDM3015N-150R-CM |
| Manufacturers Catalog Number | GDM3015N150RCMPR1535 |
| Minimum Groove Width (mm) | -0.03 |
| Maximum Groove Width (mm) | 0.03 |
| Chip Breaker | CM |
| Full Radius | Yes |
| Overall Width | 3.00 |
| Coating/Finish | Megacoat Nano |
| Number Of Cutting Edges | 2 |
