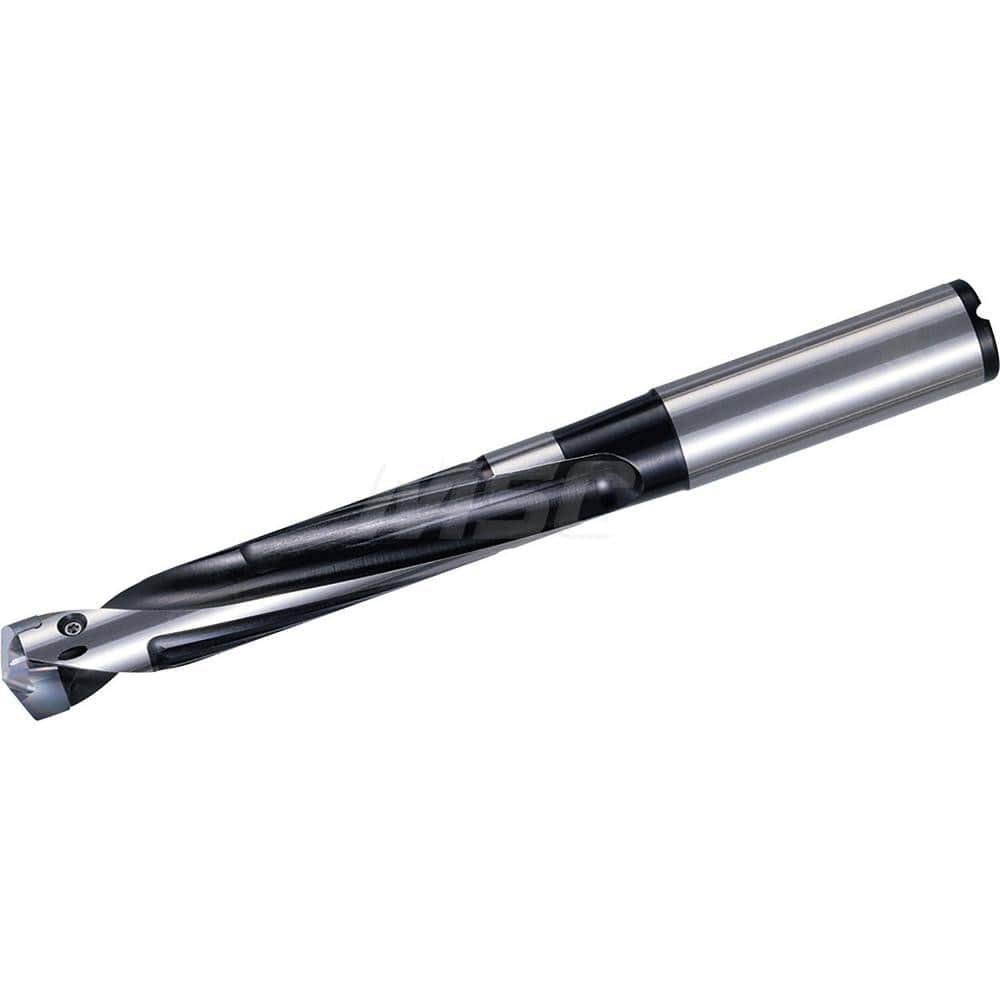

Replaceable Tip Drill: 16 to 16.99 mm Drill Dia, 85 mm Max Depth, 18 mm Straight-Cylindrical Shank Seat Size 16, 158 mm OAL, Through Coolant
Item #: 18260257
Brand: Kyocera
Model #: THD08161
Product Specifications
| Minimum Drill Diameter (Decimal Inch) | 0.6299 |
| Minimum Drill Diameter (mm) | 16.00 |
| Maximum Drill Diameter (mm) | 16.99 |
| Maximum Drill Diameter (Decimal Inch) | 0.6689 |
| Drill Depth by Diameter Ratio | 5xD |
| Maximum Drill Depth (mm) | 85.00 |
| Shank Type | Straight-Cylindrical |
| Insert Style | DA |
| Insert Seat Size | 16 |
| Shank Diameter (mm) | 18.00 |
| Maximum Drill Depth Range (mm) | 80.00 to 100.00 |
| Overall Length (mm) | 158.00 |
| Series | DRA |
| Toolholder Style | SS |
| Body Length | 110.00 |
| Shank Length (mm) | 48.00 |
| Cutting Direction | Right Hand |
| Coolant Through | Yes |
| Number Of Flutes | 42 |
