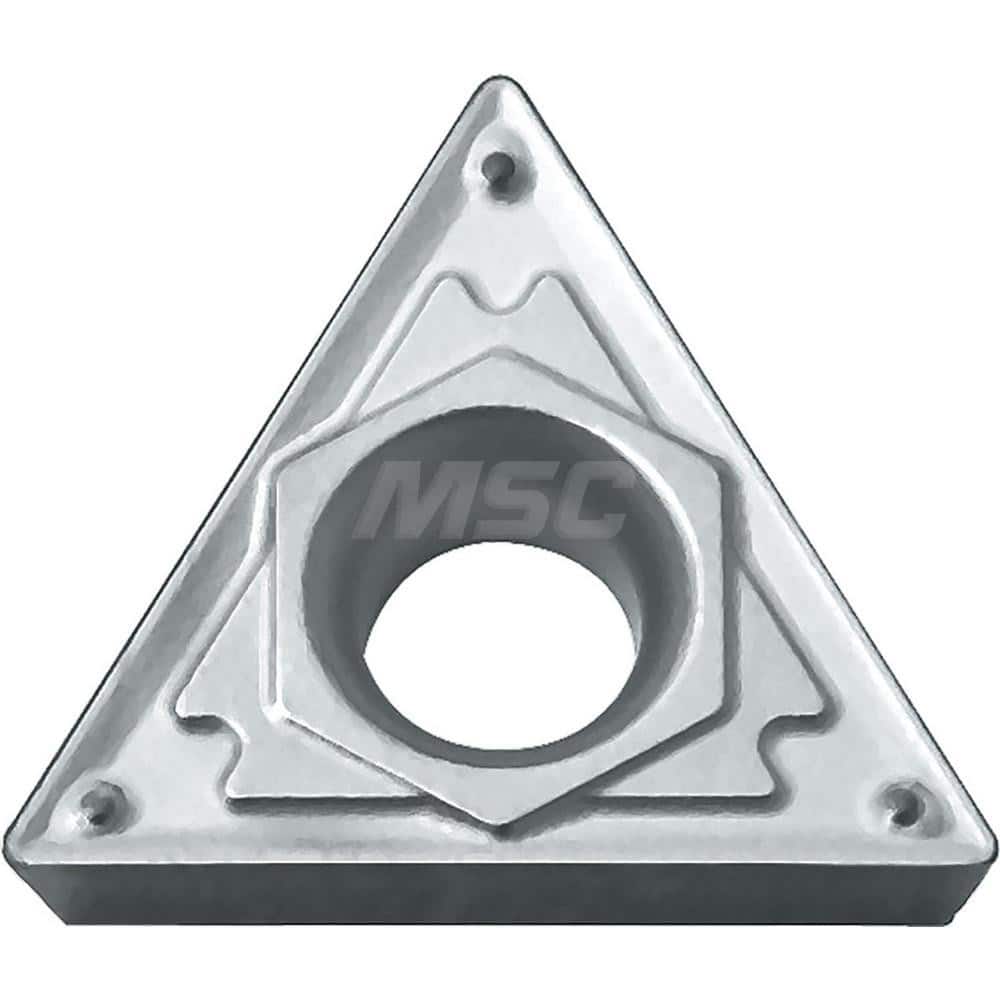

Kyocera TCMT 2152HQ TN610 Grade Uncoated Cermet, 7 Degree, Triangle, Positive Rake Angle, Neutral Turning Insert for Continuous and Finishing-Medium in (P) Carbon/Alloy Steel
Item #: 18243931
Brand: Kyocera
Model #: TSS05812
Product Specifications
| Insert Style | TCMT |
| Insert Shape Code | T |
| Insert Size Code | 2152 |
| Insert Shape | Triangle |
| Clearance Code | C |
| Tolerance Code | M |
| Insert Material | Cermet |
| Manufacturer Grade | TN610 |
| Hole Diameter (Decimal Inch) | 0.1102 |
| Inscribed Circle (Inch) | 1/4 |
| Insert Holding Method | Screw; Clamp |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.0937 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Included Angle | 60.0 |
| Relief Angle | 7 |
| Rake | Positive |
| Primary Workpiece Material | P |
| Iso Code | TCMT110208HQ |
| Manufacturers Catalog Number | TCMT2152HQTN610 |
| Chip Breaker | HQ |
| Style | TCMT |
| Full Radius | No |
| Coating/Finish | TiCN |
| Multi-Use Application | External Turning |
