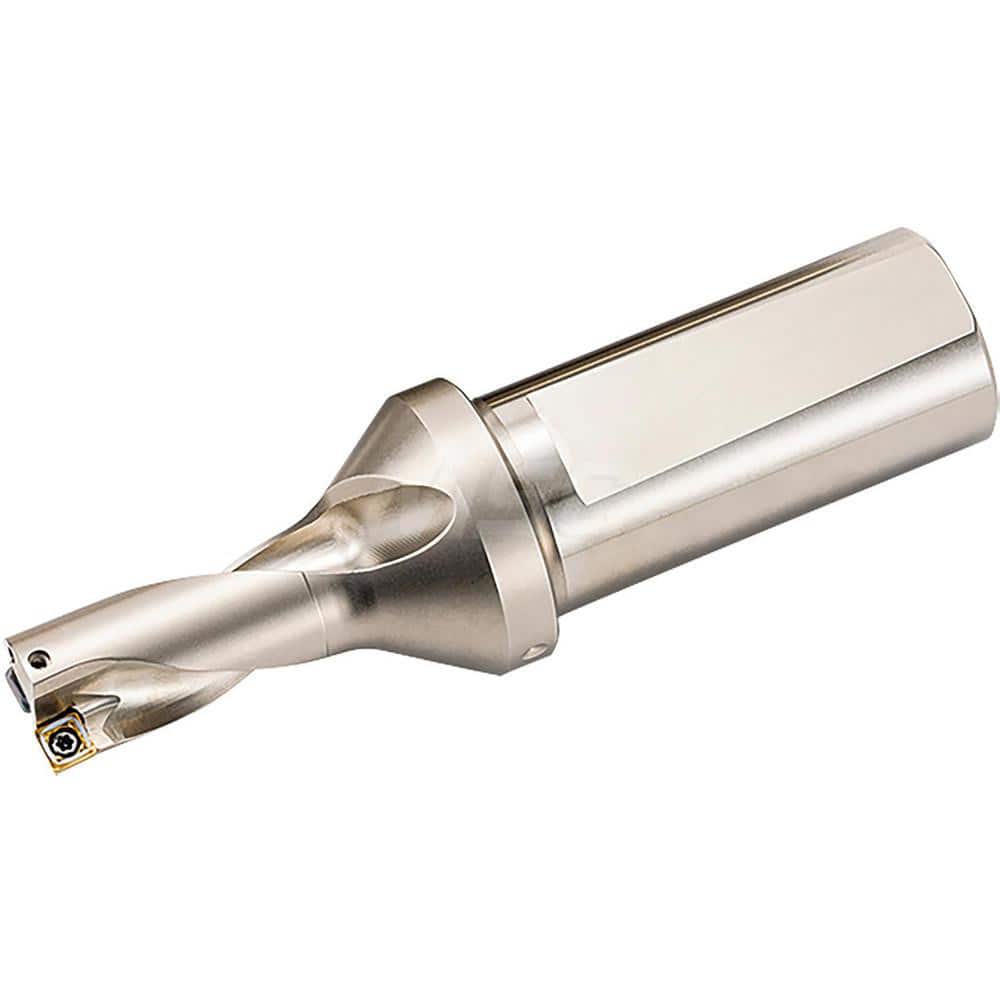

Kyocera S20DRV155M204, DRV Magic Drill 15.50mm Cutting Diameter, 20.00mm Shank Diameter, 2xD, Coolant-Through Indexable Insert Drill
Item #: 18243659
Brand: Kyocera
Model #: THD11657
Product Specifications
| Drill Style | DRV |
| Maximum Drill Diameter (mm) | 15.50 |
| Drill Diameter (Decimal Inch) | 0.6102 |
| Drill Diameter (mm) | 15.50 |
| Maximum Drill Depth (mm) | 31.00 |
| Shank Type | Weldon |
| Shank Diameter (mm) | 20.00 |
| Number of Drill Inserts | 2 |
| Drill Diameter Range (Decimal Inch) | 0.0000 to 0.7500 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (mm) | 0.00 to 50.00 |
| Tool Material | Steel |
| Compatible Insert Style | SCMT |
| Drill Depth by Diameter Ratio | 2xD |
| Series | DRV |
| Body Length | 52.00 |
| Shank Length (mm) | 43.00 |
| Overall Length/Projection (mm) | 95.00 |
| Insert Compatibility | SCMT040209-?-I; SCMT040205-?-E |
| Collar Diameter (mm) | 27.00 |
| Extension From Holder (Inch) | 2.0472 |
| Coolant Through | Yes |
