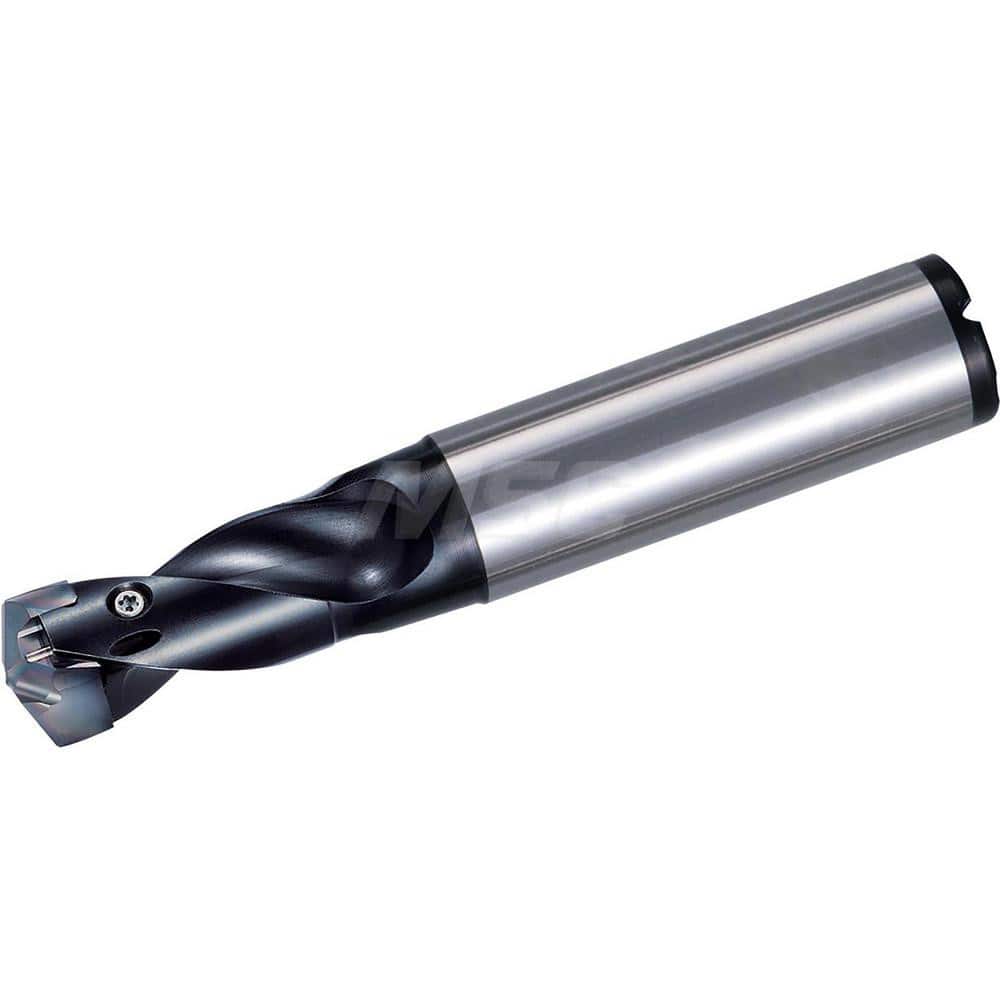

Replaceable Tip Drill: 19 to 19.99 mm Drill Dia, 30 mm Max Depth, 20 mm Straight-Cylindrical Shank Seat Size 19, 109 mm OAL, Through Coolant
Item #: 18243568
Brand: Kyocera
Model #: THD11508
Product Specifications
| Minimum Drill Diameter (Decimal Inch) | 0.7480 |
| Minimum Drill Diameter (mm) | 19.00 |
| Maximum Drill Diameter (mm) | 19.99 |
| Maximum Drill Diameter (Decimal Inch) | 0.7870 |
| Drill Depth by Diameter Ratio | 1.5xD |
| Maximum Drill Depth (mm) | 30.00 |
| Shank Type | Straight-Cylindrical |
| Insert Style | DA |
| Insert Seat Size | 19 |
| Shank Diameter (mm) | 20.00 |
| Maximum Drill Depth Range (mm) | 0.00 to 40.00 |
| Overall Length (mm) | 109.00 |
| Series | DRA |
| Toolholder Style | SS |
| Body Length | 59.00 |
| Shank Length (mm) | 50.00 |
| Cutting Direction | Right Hand |
| Coolant Through | Yes |
| Number Of Flutes | 9 |
