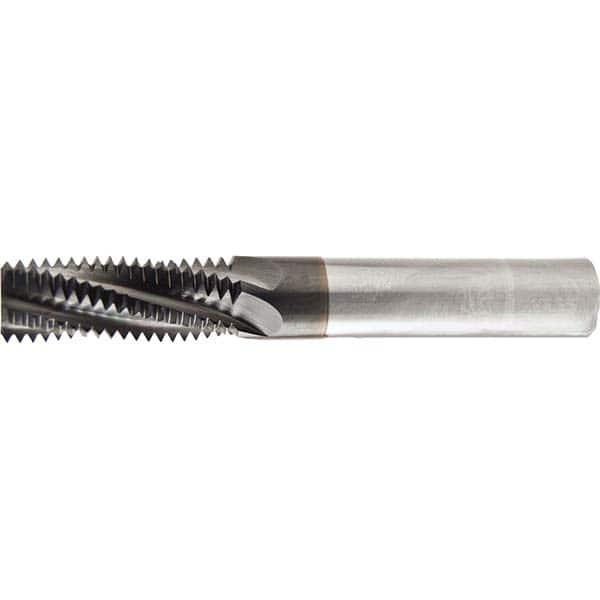

Helical Flute Thread Mill: Internal & External, 1 Flute, 3/8″ Shank Dia, Solid Carbide 0.36″ Cut Dia, 7/8″ LOC, TiAlN Coated
Item #: 18102772
Brand: Cleveland
Model #: C95082
Product Specifications
| Pitch (mm) | 1.25 |
| Material | Solid Carbide |
| Thread Size (mm) | M12 x 1.25 |
| Thread Type | Internal & External |
| Shank Diameter (mm) | 9.53 |
| Shank Diameter (Inch) | 3/8 |
| Shank Diameter (Decimal Inch) | 0.3750 |
| Cutting Diameter (mm) | 9.14 |
| Cutting Diameter (Decimal Inch) | 0.3600 |
| Length of Cut (Inch) | 7/8 |
| Minimum Nominal Diameter (mm) | 12.00 |
| Shank Length (Decimal Inch) | 2.6250 |
| Shank Length (Inch) | 2-5/8 |
| Flute Direction | Neutral |
| Material Grade | Sub Micrograin |
| Number Of Flutes | 1 |
| Coating/Finish | TiAlN |
| Coolant Through | No |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.8750 |
| Product Service Code | 5133 |
