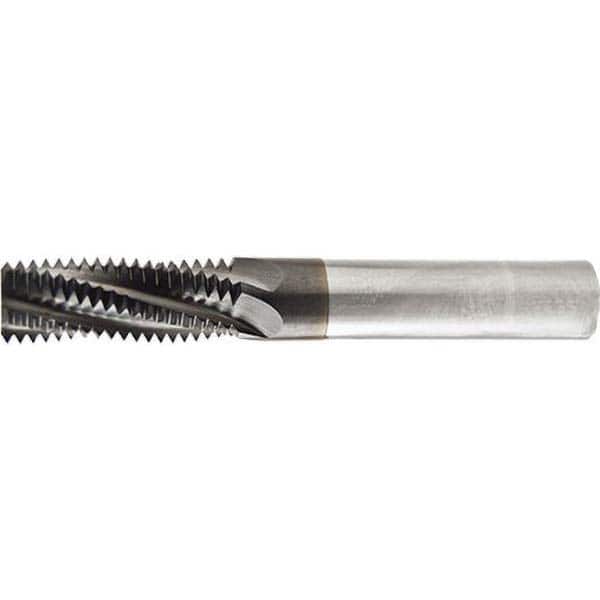

Helical Flute Thread Mill: Internal & External, 3 Flute, 3/16″ Shank Dia, Solid Carbide 0.12″ Cut Dia, 5/16″ LOC, TiAlN Coated
Item #: 18100818
Brand: Cleveland
Model #: C95088
Product Specifications
| Pitch (mm) | 0.80 |
| Material | Solid Carbide |
| Thread Size (mm) | M5 x 0.80 |
| Thread Type | Internal & External |
| Shank Diameter (mm) | 4.76 |
| Shank Diameter (Inch) | 3/16 |
| Shank Diameter (Decimal Inch) | 0.1875 |
| Cutting Diameter (mm) | 3.05 |
| Cutting Diameter (Decimal Inch) | 0.1200 |
| Length of Cut (Inch) | 5/16 |
| Minimum Nominal Diameter (mm) | 5.00 |
| Shank Length (Decimal Inch) | 1.6875 |
| Shank Length (Inch) | 1-11/16 |
| Flute Direction | Neutral |
| Material Grade | Sub Micrograin |
| Number Of Flutes | 3 |
| Coating/Finish | TiAlN |
| Coolant Through | Yes |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.3125 |
| Product Service Code | 5133 |
