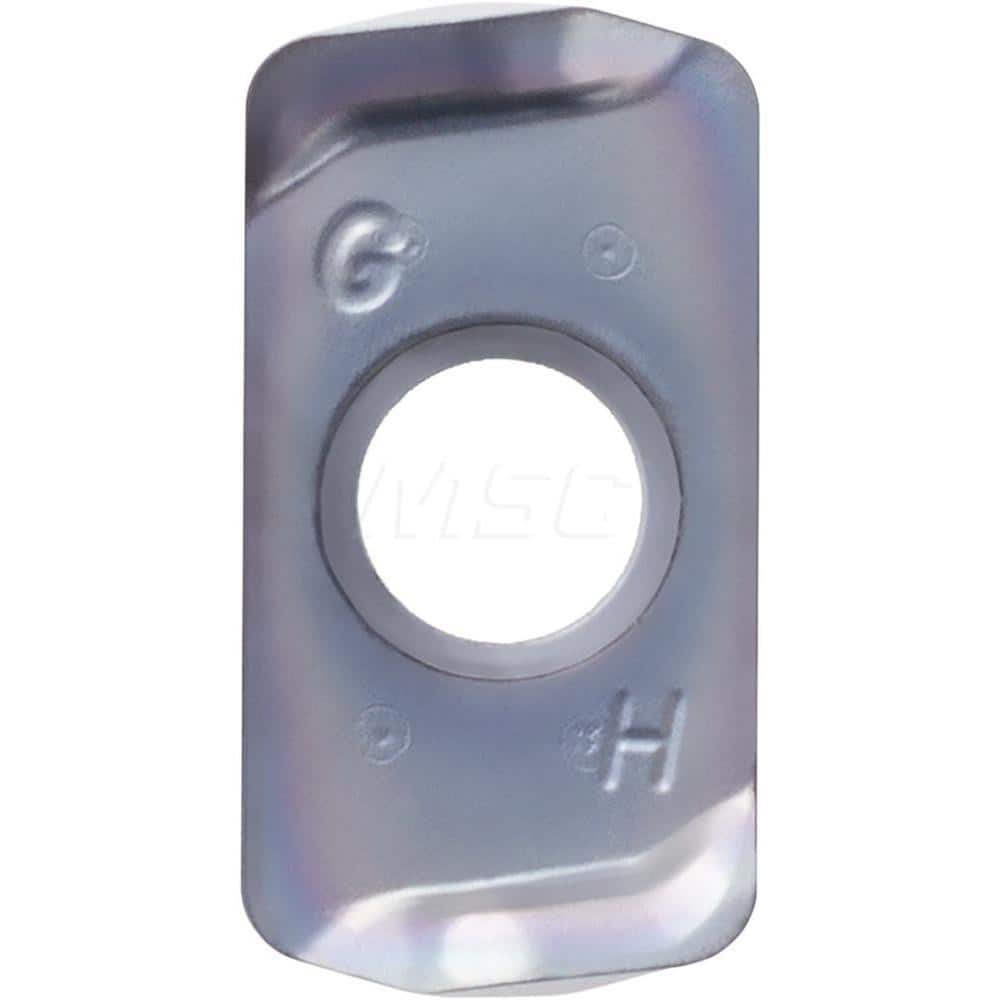

RECT POS RAKE RH Carbide Milling Insert Megacoat Nano Finish, 0.4685″ Long x 3.96mm Thick x 6.2mm Wide
Item #: 18068098
Brand: Kyocera
Model #: TLA40004
Product Specifications
| Insert Style | LOGU |
| Insert Size Code | 030310 |
| Insert Size | 030310 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | PR1510 |
| Thickness Range (Decimal Inch) | 0.1500 to 0.1750 |
| Corner Radius (Decimal Inch) | 0.0394 |
| Corner Radius (mm) | 1.00 |
| Length Range (Decimal Inch) | 0.4500 to 0.5000 |
| Insert Hand | Right Hand |
| Series | MFH-Mini |
| Coating Process | PVD |
| Hole Diameter (Mm) ( - 0 Decimals) | 3.45 |
| Hole Diameter (Decimal Inch) | 0.1358 |
| Number Of Cutting Edges | 4 |
| Cutting Edge Effective Length (Decimal Inch) | 0.4690 |
| Insert Shape | Rectangle |
| Rake | Positive |
| Primary Workpiece Material | Cast Iron |
| Primary Workpiece Material Code | K |
| Secondary Workpiece Material | Titanium Alloy |
| Secondary Workpiece Material Code | S |
| Ansi Code | LOGU030310ERGHPR1510 |
| Iso Code | LOGU030310ER-GH |
| Standards | ISO; ANSI |
| Cutting Edge Style | Honed |
| Manufacturers Catalog Number | LOGU030310ERGHPR1510 |
| Chip Breaker | ER-GH |
| Shape | Rectangle |
| Length of Cut (mm) | 11.90 |
| Insert Holding Method | Screw |
| Thickness (mm) | 3.96 |
| Coating/Finish | Coated |
| Included Angle Degree | 90 |
| Width (Decimal Inch - 4 Decimals) | 0.2441 |
| Width (Mm - 2 Decimals) | 6.20 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1559 |
| Length (Decimal Inch - 4 Decimals) | 0.4685 |
 | |
| MSC Part # | 18068098 |
| Mfr Part # | TLA40004 |
| Country of OriginCountry of Origin is subject to change | VARIOUS |
