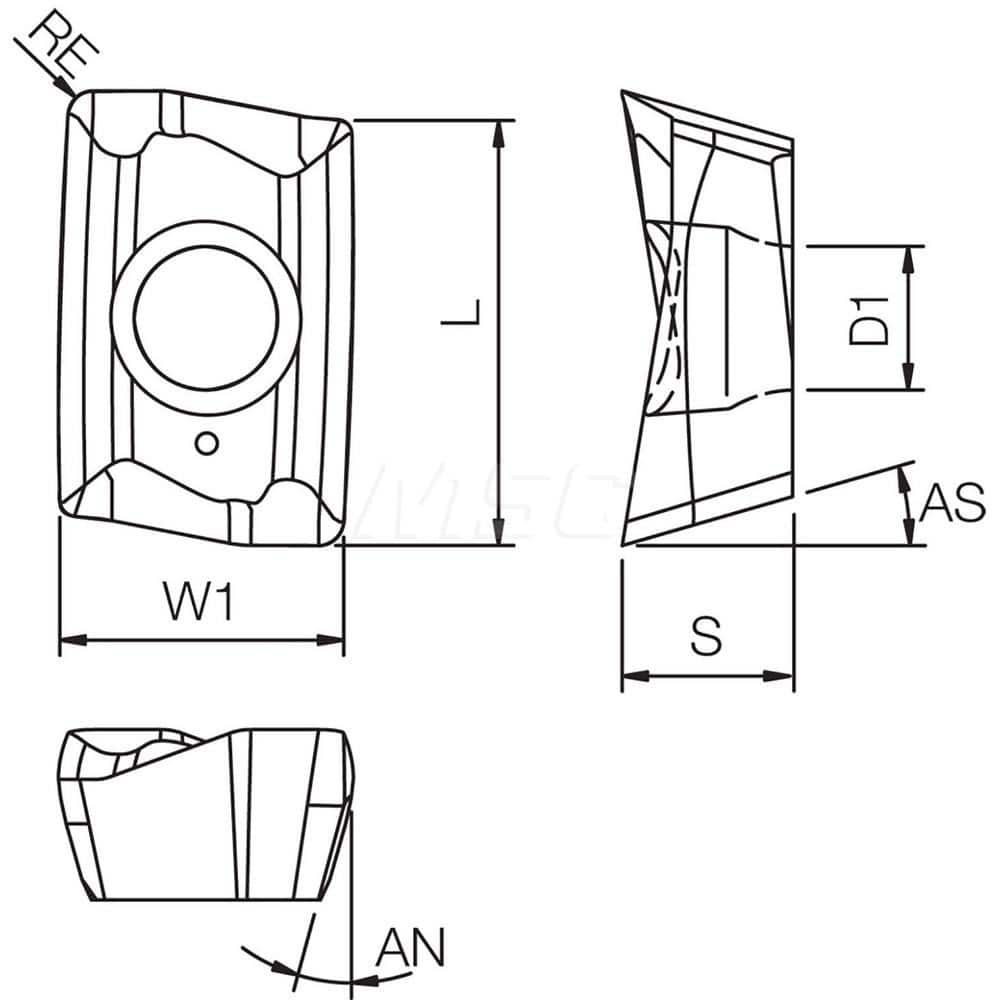

Kyocera BDMT 070302ERJT PR1210 Grade PVD Carbide, Parallelogram, Positive Rake Angle, Right-Hand Milling Insert for Roughing in (K) Gray Cast Iron, (K) Nodular Cast Iron and (S) Titanium Alloy
Item #: 17980129
Brand: Kyocera
Model #: TKA00285
Product Specifications
| Insert Style | BDMT |
| Insert Size | 070302 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | PR1210 |
| Inscribed Circle (Decimal Inch) | 0.1811 |
| Thickness Range (Decimal Inch) | 0.1000 to 0.1250 |
| Corner Radius (Decimal Inch) | 0.0079 |
| Inscribed Circle Range (Decimal Inch) | 0.0000 to 0.2500 |
| Length Range (Decimal Inch) | 0.0000 to 0.3200 |
| Insert Hand | Right Hand |
| Coating Process | PVD |
| Hole Diameter (Decimal Inch) | 0.0906 |
| Maximum Depth of Cut (Decimal Inch) | 0.2638 |
| Rake | Positive |
| Ansi Code | BDMT070302ERJTPR1210 |
| Iso Code | BDMT070302ER-JT |
| Cutting Edge Style | Honed |
| Manufacturers Catalog Number | BDMT070302ERJTPR1210 |
| Cutter Series Compatibility | MECX |
| Chip Breaker | JT |
| Cutting Direction | Right Hand |
| Shape | Parallelogram |
| Insert Holding Method | Screw |
| Coating/Finish | Megacoat |
| Width (Decimal Inch - 4 Decimals) | 0.1811 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1024 |
| Length (Decimal Inch - 4 Decimals) | 0.2750 |
