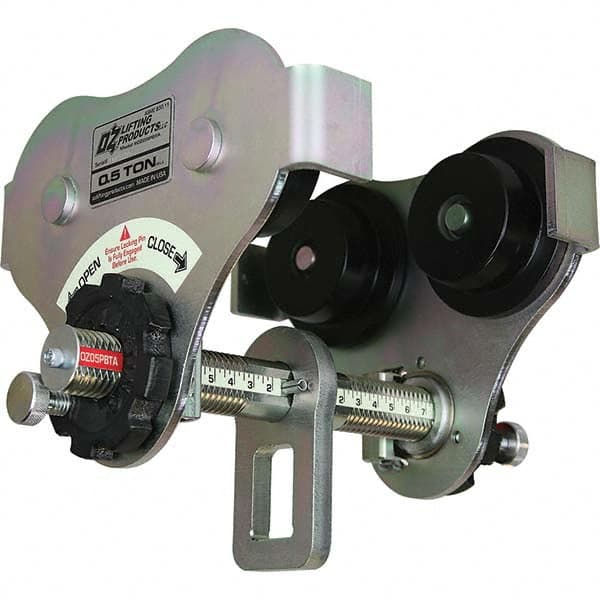

Trolleys; Type: Quick Install; Maximum Flange Width: 8; Maximum Flange Width (Decimal Inch): 8.0000; Minimum Flange Width (Decimal Inch): 2.5200; Minimum Radius (Inch): 2.7500; Flange Width (Inch): 2.52 to 8; Wheel Diameter (Inch): 2.3800; Standards: ASME
Item #: 16996035
Brand: OZ Lifting Products
Model #: OZ05PBTA
Product Specifications
| Type | Quick Install Manual Trolley; Quick Install |
| Trolley Type | Quick Install |
| Load Capacity (Lb.) | 1000.000; 0.5 |
| Work Load Limit | 0.5 TON |
| Load Capacity (Ton) | 0.5 |
| Maximum Flange Width | 8 in |
| Minimum Flange Width | 2.52 in |
| Minimum Radius | 2.750 |
| Flange Width (Inch) | 2.52 - 8 |
| Overall Width | 8.3 in |
| Overall Depth | 8.5 in |
| Overall Length | 12.25 in |
| Finish | Zinc-Plated |
| Standards | ASME B30.11; ASME B30.16; RoHS Compliant |
| Wheel Diameter (Decimal Inch) | 2.38 |
| I-Beam Height Range | 2.5 Minimum |
