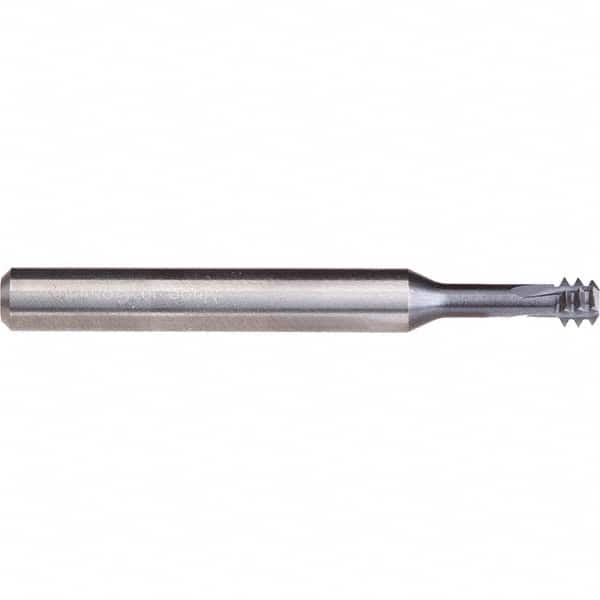

Helical Flute Thread Mill: Internal, 4 Flute, Solid Carbide 0.2559″ Cut Dia, 2.5″ OAL, TiAlN-T46 Coated
Item #: 16849945
Brand: Emuge
Model #: GF26A729.0080
Product Specifications
| Pitch (mm) | 1.25 |
| Material | Solid Carbide |
| Thread Size (mm) | M8 x 1.25 |
| Thread Type | Internal |
| Shank Diameter (mm) | 6.00 |
| Cutting Diameter (mm) | 6.50 |
| Cutting Diameter (Decimal Inch) | 0.2559 |
| Length of Cut (mm) | 16.70 |
| Minimum Nominal Diameter (mm) | 8.00 |
| Overall Length (Decimal Inch) | 2.5000 |
| Flute Direction | Left Hand |
| Number Of Flutes | 4 |
| Coating/Finish | TiAlN-T46 |
| Coolant Through | Yes |
