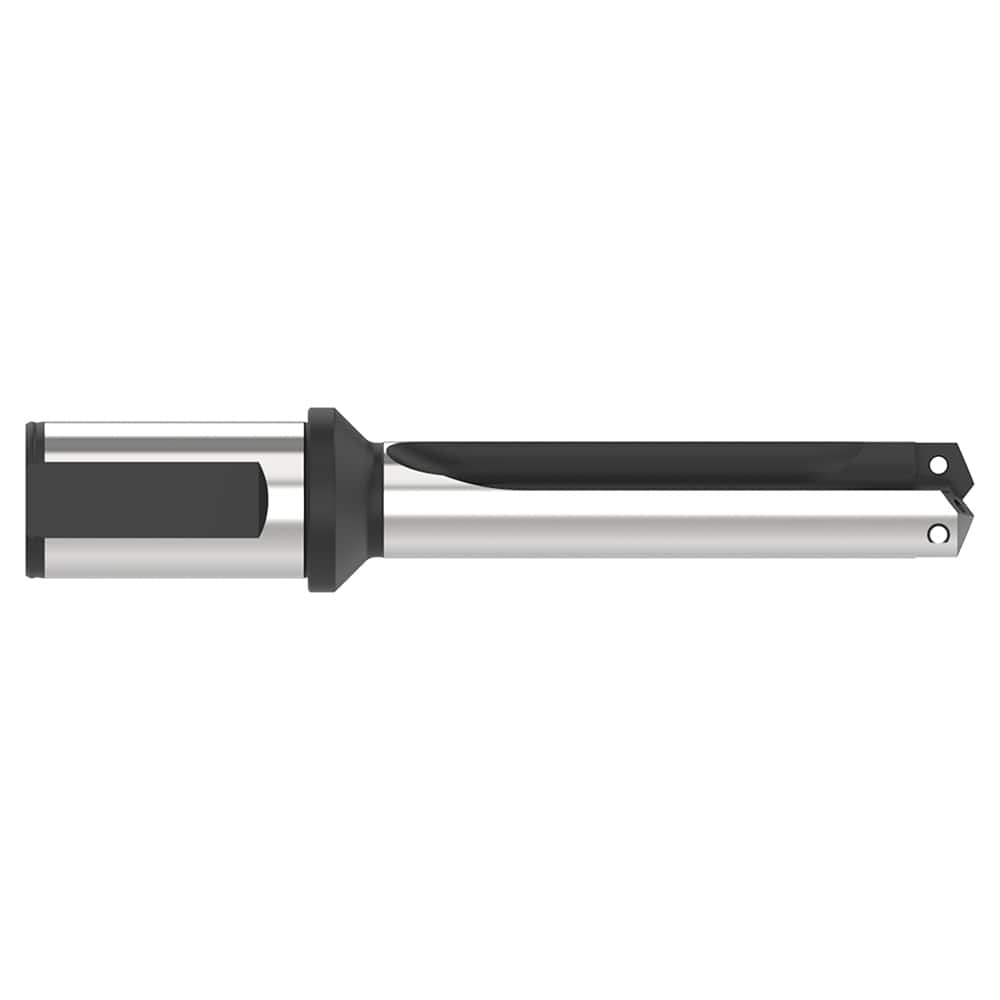

Indexable Spade Drill: 25.4 to 35.07 mm Dia, 89.23 mm Max Depth, Straight Flute 32 mm Shank Dia, Flanged Shank, 137.44 mm Body Length, 197.44 mm OAL, Through Coolant, Series T-A Pro
Item #: 16715310
Brand: Allied Machine and Engineering
Model #: HTA2B03-32FM
Product Specifications
| Minimum Drill Diameter (mm) | 25.40 |
| Maximum Drill Diameter (mm) | 35.07 |
| Maximum Drill Depth (mm) | 89.23 |
| Spade Drill Length | Standard |
| Shank Type | Flanged |
| Shank Diameter (mm) | 32.00 |
| Drill Depth by Diameter Ratio | 3xD |
| Overall Length (mm) | 197.44 |
| Series | T-A Pro |
| Flute Type | Straight |
| Body Length | 137.44 |
| Shank Length (mm) | 59.99 |
| Coolant Through | Yes |
