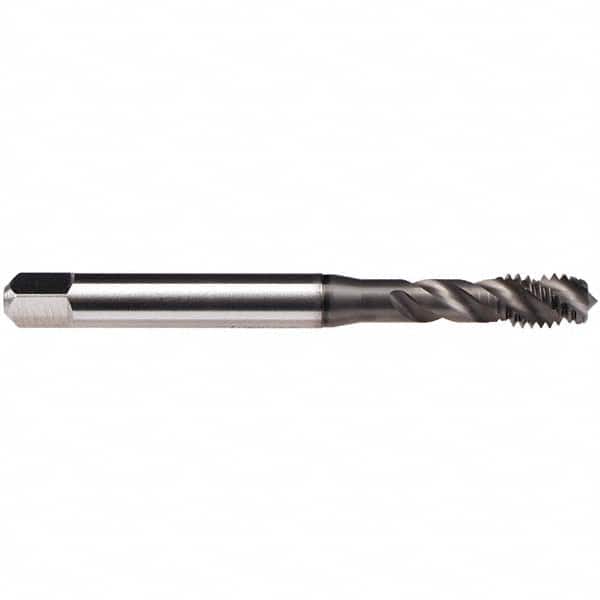

Spiral Flute Tap: 3/8-24, UNF, 3 Flute, Bottoming, 3B Class of Fit, HSS-E, GLT-1 Finish 3.937″ OAL, Right Hand Flute, Right Hand Thread, H3
Item #: 16558751
Brand: Emuge
Model #: BU51C410.5045
Product Specifications
| Material | HSS-E |
| Coating/Finish | GLT-1 |
| Thread Size (Inch - 0 Decimals) | 3/8-24 |
| Thread Standard | UNF |
| Thread Limit | H3 |
| Thread Direction | Right Hand |
| Overall Length (Decimal Inch) | 3.9370 |
| Overall Length (mm) | 100.00 |
| Chamfer | Bottoming |
| Flute Direction | Right Hand |
| Helix Angle | 45 |
| Oversize | No |
| Shank Diameter (Decimal Inch) | 0.3810 |
| Neck Length (Decimal Inch) | 1.5354 |
| Tapping Depth (Decimal Inch) | 1.1250 |
| Flute Style | Fast |
| Material Application | Stainless Steel |
| Helix Angle Range | 15 to 45 |
| Shank Length (Decimal Inch) | 0.2860 |
| Coolant Through | No |
| Number Of Flutes | 3 |
| Class Of Fit | 3B |
