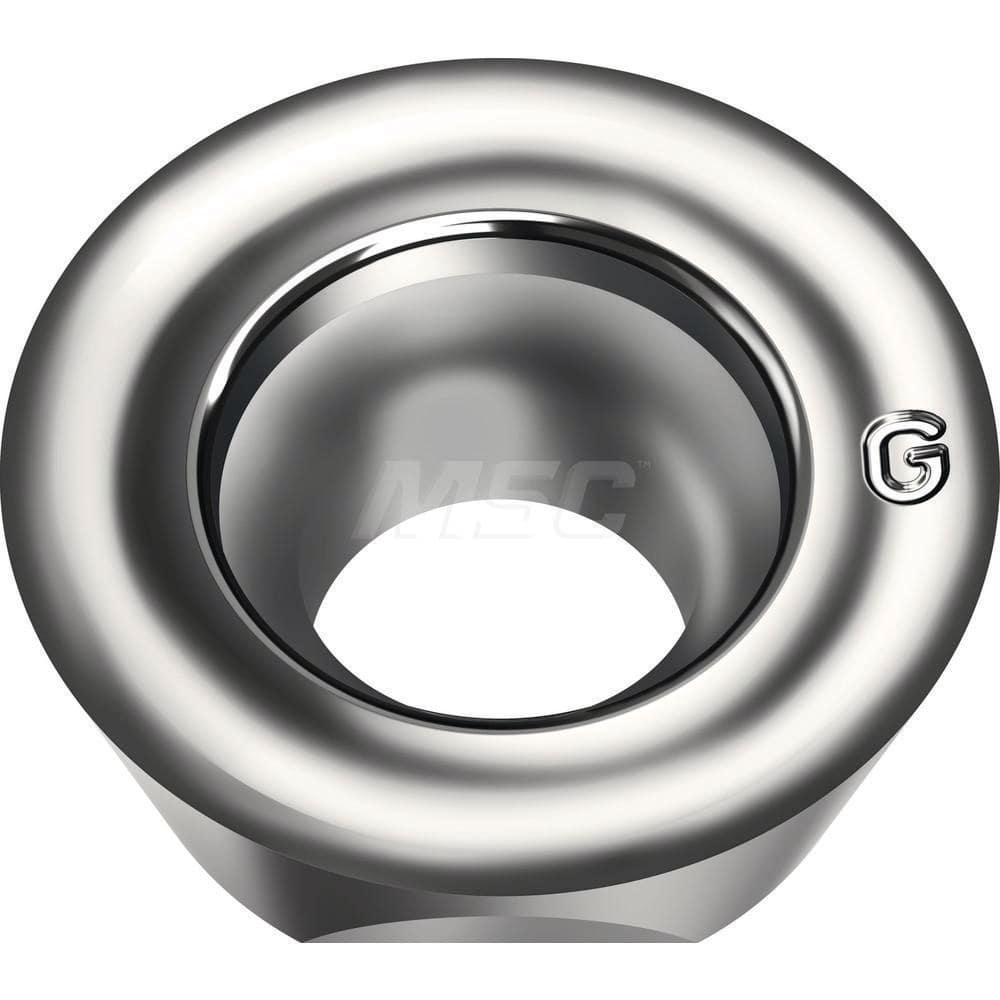

Milling Insert: ROGX0803M04-G88 WK10, WK10, Solid Carbide N/A Finish,
Item #: 16280273
Brand: Walter
Model #: 7988416
Product Specifications
| Insert Style | ROGX |
| Insert Size Code | 08 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | WK10 |
| Inscribed Circle (Decimal Inch) | 0.3150 |
| Thickness Range (Decimal Inch) | 0.1000 to 0.1250 |
| Corner Radius (Decimal Inch) | 0.1570 |
| Inscribed Circle Range (Decimal Inch) | 0.3000 to 0.3500 |
| Insert Hand | Neutral |
| Relief Angle | 11.00 |
| Series | ROGX |
| Hole Diameter (Decimal Inch) | 0.1340 |
| Number Of Cutting Edges | 4 |
| Cutting Edge Effective Length (mm) | 8.00 |
| Insert Shape | Round |
| Primary Workpiece Material | Non-Ferrous Metal |
| Primary Workpiece Material Code | N |
| Iso Code | ROGX0803M04-G88 WK10 |
| Chip Breaker | G88 |
| Coating/Finish | Uncoated |
| Thickness (Decimal Inch - 4 Decimals) | 0.1250 |
